Applications
- Welding equipment for minor construction projects
- Home decoration industry welding machine
- Welding equipment for farm and ranch
- Portable welder for repairs and home DIY

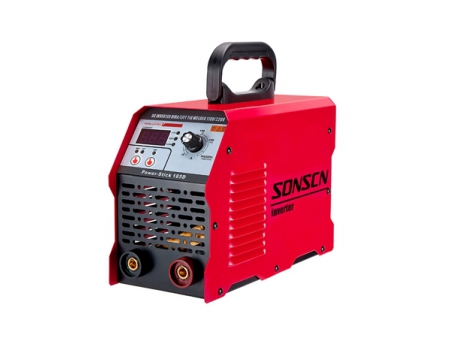

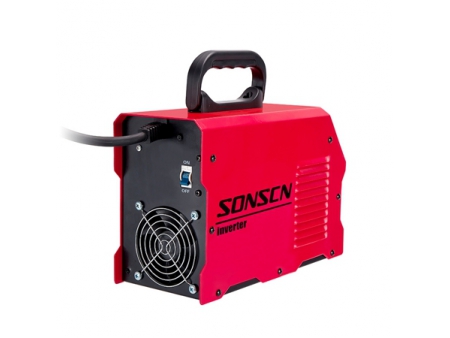

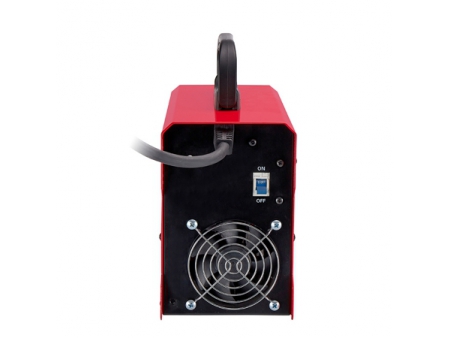

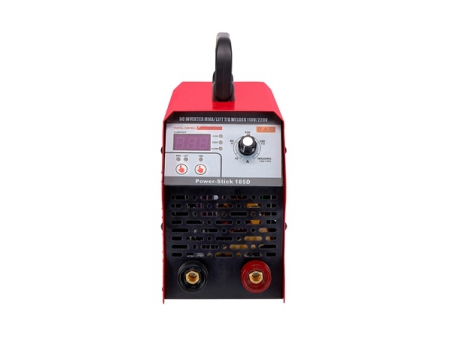

MMA Welder Type: K
Request a Quote
- VRD function: ensures the safety of the operators.
- Advanced IGBT inverter &MCU digital control: provides stable performance, reliability and high consistency.
- Portable & lightweight: this welder is easy to operate and carry.
- Wide range of input voltages: 155-265V (1ph) 50/60HZ.
- Generator compatible: The MMA welder type K will be able to operate when powered by a generator.
| Model | Power Voltage | No-load Voltage | Efficiency | Rated Input Power | Output Current Range | Duty Cycle | Electrode Diameter | Weight | Dimension |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 5.5KVA | 10-120A | 60% | 1.5-3.2mm(1/8") | 3.0kg | 25*10.5*16cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 6.1KVA | 10-140A | 60% | 1.5-3.2mm(1/8") | 3.2kg | 25*10.5*16cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 6.9KVA | 10-160A | 60% | 1.5-4.0mm(5/32") | 3.8kg | 25*10.5*16cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 8.2KVA | 10-180A | 60% | 1.5-5.0mm(3/16") | 4.2kg | 31*13*20cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 9.6KVA | 10-200A | 60% | 1.5-5.0mm(3/16") | 4.5kg | 31*13*20cm |
Features
- VRD function
Ensures the safety of the operators.
- Advanced IGBT inverter &MCU digital control
Provides stable performance, reliability and high consistency.
- Portable & lightweight
This welder is easy to operate and carry.
- Wide range of input voltages
155-265V (1ph) 50/60HZ.
- Generator compatible
The MMA welder type K will be able to operate when powered by a generator.
- Premium welding performance
Support welding rods with a maximum diameter of 1.6mm (1/16") or 5.0mm(3/16"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Good performance on various types of welding rods, such as E7018, E6010, E6011, E6013, E308, etc.
- Hot start
Provides very easy, quick and reliable arc starts upon contact with the workpiece.
- Anti-stick
Avoid electrode sticking in the workpiece during welding, ensures no sticking and smooth welds.
- Built-in arc force
Provides smooth and continuous arc, ensures stable welding, and maintains deeper penetration.
- Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.
- Lift TIG capabilities
Integrated lift-TIG functionality enables TIG welding using argon gas. You can choose stick or lift TIG mode as you want.
- Optional sizes come with
25*13*20cm or 36*14*23cm.
Standard Accessories
- Electrode holder with cable

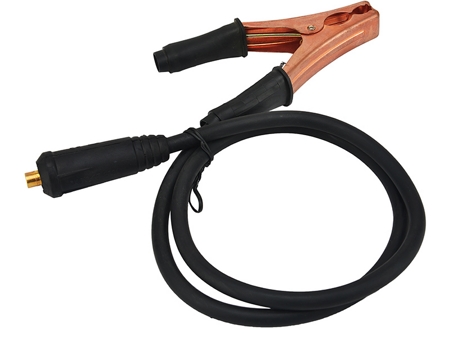

- Earth clamp with cable
Optional Accessories
- Plastic tool box
- Welding mask
- Wire brush
FAQs
In the MMAW process, a welding rod is inserted in the welding rod holder and placed on the weld. Simultaneous melting of the welding rod and its flux coating will form gas and slag which protects the weld pool and arc from the surrounding atmosphere and prevent oxidation of the weld.
Thanks to inverter technology, MMA welding is also a highly portable process that is often used for on-site and field operations. In addition, when welding rusty or dirty materials, MMA welding is generally more “forging” than MIG or TIG, making it an ideal choice for maintenance applications.
MMA Welder Type K is suitable for various types of welding rods such as E7018, E6010, E6011, E6013, E308, and more.
When purchasing this welder, Standard Accessories include an electrode holder with cable and an earth clamp with cable.
- MMA Welder Type K is integrated with IGBT inverter technology, making the welding equipment more energy-efficient and compact in size, facilitating movable welding.
- It incorporates MCU intelligent control technology, making the welder more intelligent, with stable performance and high consistency, thus improving welding quality and efficiency.
- It is also equipped with VRD technology to ensure the safety of equipment and operator.
The use of VRD function ensures the safety of operators. Additionally, it provides automatic protection against overload, overheating, high or low voltage, and short circuits.
Yes, Our Products have obtained multiple patented technologies, as well as international CE certification. For more information, please to view.
Yes, we can provide customization for welding machines and related OEM services, such as welding machine color, size, appearance, packing, performance, parameters, etc., to meet the needs of welding processes.
If you have any questions about our welders, please email us or give us a call.
