SBH150B Roll Fed Square Bottom Paper Bag Machine

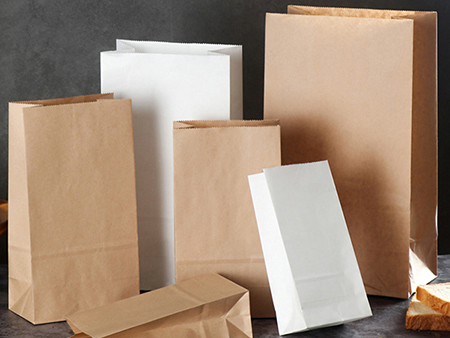

The SBH150B roll fed square bottom paper bag machine is designed to manufacture square bottom paper bags from a paper roll in blank or printed paper. Side gluing, tube forming, tube cutting, bottom creasing, bottom gluing, bottom forming and final product out feed are all completed in a single run, making this machine ideal for the production of 40gsm to 50gms paper bags. It is also ideal equipment for making paper bags for food, shopping bags and other commonly used paper bag types. The machine uses German machinery manufacturing technology and ideas, including a high speed movement of the central control system (CPU) control, touch screen display, and servo system adjustable bag length, all in order to produce bags in different specifications. Customers can request a servo window die cutting and film patching unit, two ply unit, and 1-4 printing color unit be added to the SBH150B roll fed production machine in order to produce see through window bags, two ply bags and bags with an inline printing, offering clients better value for their money.
- USA NORDSON Cold Glue

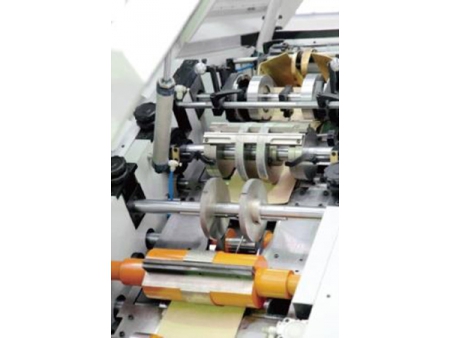

Adhesive System - Bag Production Part

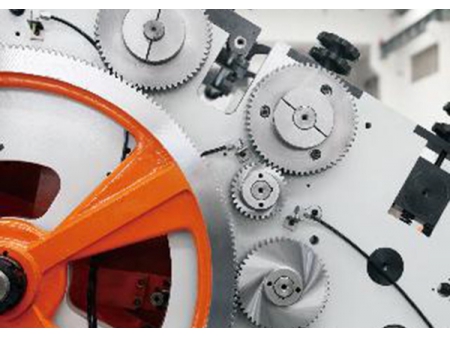

- Mechanical Drive
1. The roll fed square bottom paper bag machine is equipped with a Japanese Mitsubishi servo system and SICK photocell for correction, so that users can accurate track printed material, and minimize adjustment and pre-set times.
2. It is equipped with a Mitsubishi electric control system and Mitsubishi motion controller (CPU). This achieves an integration of an optical fiber in order to achieve a high speed and high precision, motion control and production flow test. With a touch screen display, the operation functions are clear, and feature a great human to machine interface.

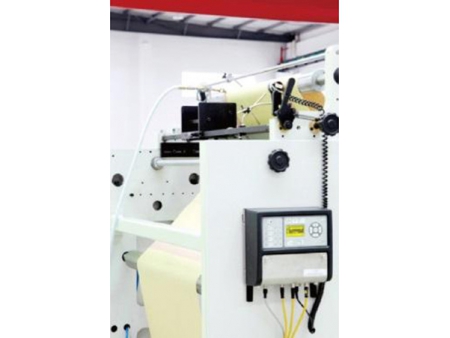

3. Equipped with a tension system and automatic WEB correction system, this paper bag production machine can reduce waste and improve efficiency.
4. The automatic fault alarm, equipped with paper web detector, avoids damage to the machine caused by paper jams.
5. It is also equipped with an automatic lubrication system and timing quantitative lubrication.

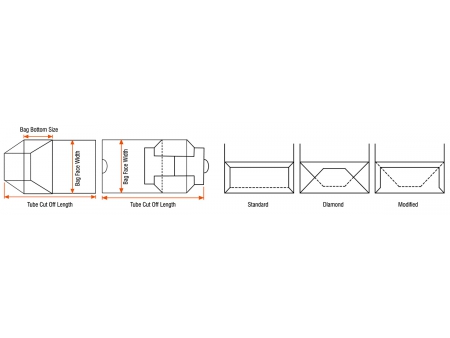

Bag Schematic Diagram
| Technical Info | |||||||
| Paper Roll Width (mm) | 280-640 | 280-640 | 405-1050 | 465-1050 | 505-1050 | 610-1310 | 690-1310 |
| Paper Roll Dia. (mm) | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| Paper Roll Core Dia. (mm) | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 |
| Paper Thickness (gsm) | 40-135 | 40-135 | 45-150 | 50-150 | 50-150 | 70-150 | 70-150 |
| Tube Cut Off Length (mm) | 191-385 | 191-430 | 280-540 | 280-540 | 280-540 | 368-762 | 368-762 |
| Bag Face Width (mm) | 80-200 | 80-200 | 120-330 | 150-330 | 150-330 | 200-450 | 210-450 |
| Bag Bottom Size (mm) | 50-100 | 45-100 | 70-150 | 70-180 | 90-180 | 90-205 | 120-260 |
| Max. Speed (bags/min) | 250 | 250 | 230 | 220 | 220 | 150 | 150 |
| Total Power (kW) | 8.75 | 8.75 | 16.5 | 18.9 | 18.9 | 17.9 | 17.9 |
| Machine Weight (kg) | about 5600 | about 6500 | about 8500 | about 9000 | about 9000 | about 11000 | about 11000 |
| Machine Size ((L×W×H)m) | 8.6×2.6×1.96 | 8.6×2.6×1.96 | 11.5×3.1×1.96 | 11.5×3.1×1.96 | 11.5×3.1×1.96 | 13×3.9×2 | 13×3.9×2 |
| Three Types of Bottom Seal | yes | yes | yes | yes | yes | yes(Two) | yes(Two) |
| Servo Lip Cut Device | yes | yes | yes | yes | yes | with or w/o | with or w/o |
| M= Servo Motorized Plate Device | no | no | with or w/o | with or w/o | with or w/o | with or w/o | with or w/o |
| Bottom Forming Drum With Vacuum Assist | no | no | yes | yes | yes | yes | yes |
| Options Unit | |||||||
| DC01/DC02 Servo Window Cutting Unit | yes | yes | yes | yes | yes | yes | yes |
| TM01/TM02 Servo Film Patching & Laminating Unit | yes | yes | yes | yes | yes | yes | yes |
| PAV02C Die Cut Handle Patch Application Unit | yes | yes | yes | yes | yes | yes | yes |
| DL01/DL02/DL03 Two Ply Unit | yes | yes | yes | yes | yes | yes | yes |
| 1-4 Colors Flexo Printing Unit | yes | yes | yes | yes | yes | yes | yes |
| Twisted Handle Making Unit | yes | yes | yes | yes | yes | yes | yes |
| Internal Flat Handle Making Unit | no | no | yes | yes | yes | yes | yes |
Model: SBH150
Paper Roll Width (mm):295-640
Paper Roll Dia. (mm): ≤1200
Paper Roll Core Dia. (mm): Φ76
Paper Thickness (gsm):40-135
Tube Cut Off Length (mm):191-385
Bag Face Width (mm):80-200
Bag Bottom Size (mm):50-100
Max. Speed (bags/min):250
Total Power (kW):8.75
Machine Weight (kg): about 5600
Machine Size ((L×W×H) m): 8.6×2.6×1.96
Three Types Bottom Seal: in
Servo Lip Cut Device: in
Serrated & Straight Cut Device: in
M= Servo Motorized Plate Device: no
Bottom Forming Drum with Vacuum Assist: no
Model: SBH290
Paper Roll Width (mm):395-910
Paper Roll Dia. (mm): ≤1200
Paper Roll Core Dia. (mm): Φ76
Paper Thickness (gsm):50-160
Tube Cut Off Length (mm):280-530
Bag Face Width (mm):120-290
Bag Bottom Size (mm):70-160
Max. Speed (bags/min):220
Total Power (kW):10.25
Machine Weight (kg): about 8000
Machine Size ((L×W×H) m): 11.5×3.1×1.96
Three Types Bottom Seal: in
Servo Lip Cut Device: in
Serrated & Straight Cut Device: in
M= Servo Motorized Plate Device: no
Bottom Forming Drum with Vacuum Assist: no
Model: SBH330
Paper Roll Width (mm):420-1050
Paper Roll Dia. (mm): ≤1600
Paper Roll Core Dia. (mm): Φ76
Paper Thickness (gsm):50-160
Tube Cut Off Length (mm):280-530
Bag Face Width (mm):125-330
Bag Bottom Size (mm):70-160
Max. Speed (bags/min):230
Total Power (kW):14.5
Machine Weight (kg): about 8500
Machine Size ((L×W×H) m): 11.5×3.1×1.96
Three Types Bottom Seal: in
Servo Lip Cut Device: in
Serrated & Straight Cut Device: in
M= Servo Motorized Plate Device: w/o
Bottom Forming Drum with Vacuum Assist: yes
Model: SBH330B
Paper Roll Width (mm):465-1050
Paper Roll Dia. (mm): ≤1600
Paper Roll Core Dia. (mm): Φ76
Paper Thickness (gsm):50-160
Tube Cut Off Length (mm):280-530
Bag Face Width (mm):160-330
Bag Bottom Size (mm):70-180
Max. Speed (bags/min):220
Total Power (kW):14.5
Machine Weight (kg): about 9000
Machine Size ((L×W×H) m): 11.5×3.1×1.96
Three Types Bottom Seal: in
Servo Lip Cut Device: in
Serrated & Straight Cut Device: in
M= Servo Motorized Plate Device: w/o
Bottom Forming Drum with Vacuum Assist: yes
Model: SBH450
Paper Roll Width (mm):618-1310
Paper Roll Dia. (mm): ≤1600
Paper Roll Core Dia. (mm): Φ76
Paper Thickness (gsm):70-160
Tube Cut Off Length (mm):368-762
Bag Face Width (mm):200-450
Bag Bottom Size (mm):90-180
Max. Speed (bags/min):160
Total Power (kW):18.8
Machine Weight (kg): about 11000
Machine Size ((L×W×H) m): 13×3.9×2
Three Types Bottom Seal: in
Servo Lip Cut Device: no
Serrated & Straight Cut Device: in
M= Servo Motorized Plate Device: w/o
Bottom Forming Drum with Vacuum Assist: yes
Model: SBH450B
Paper Roll Width (mm):618-1310
Paper Roll Dia. (mm): ≤1600
Paper Roll Core Dia. (mm): Φ76
Paper Thickness (gsm):70-160
Tube Cut Off Length (mm):368-762
Bag Face Width (mm):200-450
Bag Bottom Size (mm):90-205
Max. Speed (bags/min):160
Total Power (kW):18.8
Machine Weight (kg): about 11000
Machine Size ((L×W×H) m): 13×3.9×2
Three Types Bottom Seal: in
Servo Lip Cut Device: no
Serrated & Straight Cut Device: in
M= Servo Motorized Plate Device: w/o
Bottom Forming Drum with Vacuum Assist: yes
