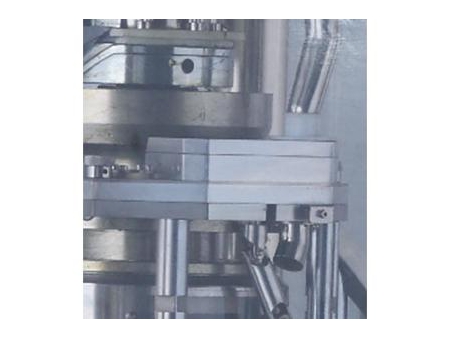

Lab Tablet Press Machine ZP198
Request a Quote
The ZP198 tablet press is a small type output tablet press machine particularly suited for use in R&D laboratories.
Specification:
| Model | ZP8 | ZP10 | ZP14 | ZP17 | ZP21 | ZP23 |
| Number of Stations | 8 | 10 | 14 | 17 | 21 | 23 |
| Tooling Type | D | D | B | B | BB | BBS |
| Main Compression Force (kN) | 60 | 60 | 60 | 60 | 60 | 60 |
| Pre Compression Force (kN) | 10 | 10 | 10 | 10 | 10 | 10 |
| Maximum Tablet Diameter (mm) | 25 | 25 | 18 | 18 | 13 | 11 |
| 16Depth of Fill (mm) | 16 | 16 | 16 | 16 | 16 | 16 |
| 6Maximum Tablet Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| Max. Turret RPM (r/min) | 30 | 30 | 30 | 30 | 30 | 30 |
| Max. Output (pcs/h) | 14400 | 18000 | 25200 | 30600 | 37800 | 41400 |
| Motor Power (kW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Overall Size (mm) | 700x580x1630 | 700x580x1630 | 700x580x1630 | 700x580x1630 | 700x580x1630 | 700x580x1630 |
| Approx. Net Weight (Kg) | 650 | 650 | 650 | 650 | 650 | 650 |
