Request a Quote
View All: http://hydraulic-gearpumps.com/1-2-10-tandem-gear-pump.html
Technical Information
  • Displacement: 3~71cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S), reversible (R)
  • Min. speed: 600r/min
  • Max. speed: 2500r/min
  • Peak pressure: 170~285bar
3/3 Tandem Gear Pump Ordering Code Rules

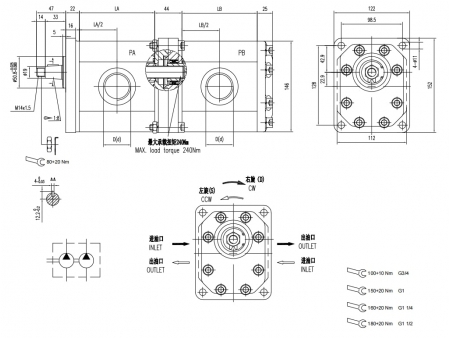

3/3 Tandem Gear Pump Standard Product Dimensions
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PB PA PB LA LB PA D d PB D d
(cm³/rev.) (cm³/rev.) bar bar (r/min) (r/min) mm mm
20 20 250 250 2500 600 81.1 81.1 L0 G3/4 G3/4 L0 G3/4 G3/4
22 22 250 250 83.1 83.1 L0 G3/4 G3/4 L0 G3/4 G3/4
26 26 250 250 86.1 86.1 L1 G1 G3/4 L1 G1 G3/4
33 33 230 230 92.1 92.1 L1 G1 G3/4 L1 G1 G3/4
39 39 230 230 99.1 99.1 L1 G1 G3/4 L1 G1 G3/4
46 46 230 230 105.1 105.1 L2 G11/4 G1 L2 G11/4 G1
50 50 220 220 109.1 109.1 L2 G11/4 G1 L2 G11/4 G1
52 52 220 220 111.1 111.1 L2 G11/4 G1 L2 G11/4 G1
55 55 200 200 113.1 113.1 L2 G11/4 G1 L2 G11/4 G1
63 63 200 200 121.1 121.1 L2 G11/4 G1 L2 G11/4 G1
71 71 180 180 128.1 128.1 L3 G11/2 G11/4 L3 G11/2 G11/4
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PB PA PB LA LB PA D d PB D d
(cm³/rev.) (cm³/rev.) bar bar (r/min) (r/min) mm mm
20 20 250 250 2500 600 81.1 81.1 L0 G3/4 G3/4 L0 G3/4 G3/4
22 22 250 250 83.1 83.1 L0 G3/4 G3/4 L0 G3/4 G3/4
26 26 250 250 86.1 86.1 L1 G1 G3/4 L1 G1 G3/4
33 33 230 230 92.1 92.1 L1 G1 G3/4 L1 G1 G3/4
39 39 230 230 99.1 99.1 L1 G1 G3/4 L1 G1 G3/4
46 46 230 230 105.1 105.1 L2 G11/4 G1 L2 G11/4 G1
50 50 220 220 109.1 109.1 L2 G11/4 G1 L2 G11/4 G1
52 52 220 220 111.1 111.1 L2 G11/4 G1 L2 G11/4 G1
55 55 200 200 113.1 113.1 L2 G11/4 G1 L2 G11/4 G1
63 63 200 200 121.1 121.1 L2 G11/4 G1 L2 G11/4 G1
71 71 180 180 128.1 128.1 L3 G11/2 G11/4 L3 G11/2 G11/4
