Gear Pump Liquid Filling Machine
Request a Quote
Filling Equipment
Gear pump filler for filling bottles and containers with liquid products

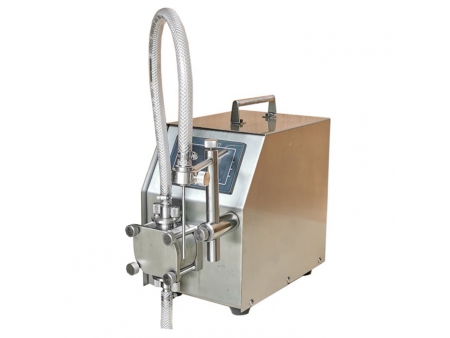

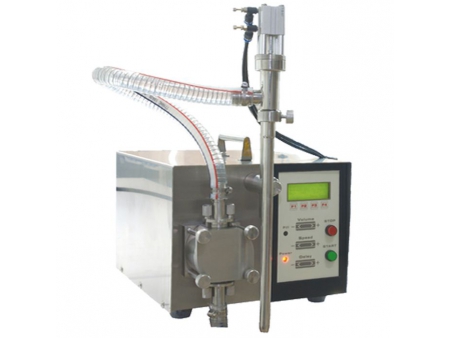

The gear pump liquid filling machine comes with a simple structure and easy operation. This filler is made of stainless steel and mainly consists of components such as gear pumps, drive motors, encoders, microcomputer controllers, or touch screen PLCs. The filling machine operates based on the principle of gear pumps, with measurement and speed controlled by a microcomputer, and has a filling capacity of 30ml-11000ml. Gear pump filler is suitable for various liquid filling applications and complies with the hygiene requirements of food and pharmaceutical industries.
Gear Pump Filling Machines We Offer
- Compact Gear Pump Liquid Filler ELF-100/100QS
- Benchtop Digital Gear Pump Filler DLF-100/100QS
- Double Head Gear Pump Liquid Filling Machine DLF-200D/200DQS
- High Volume Gear Pump Filling Machine DLF-200QS1/2
- Gear Pump Viscous Liquid Filling Machine DLF-110QS/210QS
- Multi-head Gear Pump Filling & Capping Machine DLF200-2QS/4QS

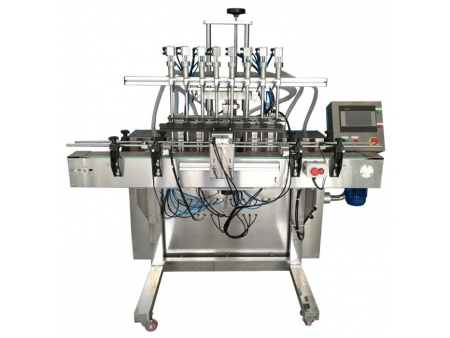

- 6-Head / 8-Head Inline Gear Pump Filling Machine DLF200-6QS/8QS
- Semi-Auto Explosion Proof Gear Pump Liquid Filler
- Automatic Explosion Proof 4-Head Liquid Filler
Applicable Products
- In household goods industry Gear pump filler is used for filling disinfectants, hand sanitizers, shower gels, shampoos, and other products.
- In food industry Gear pump filler is used for filling cocoa butter, sugar, vegetable fats, honey, and other products.
- In petrochemical industry Gear pump filler is used for filling petroleum-related products such as diesel, lubricating oil, crude oil, etc.
Applications
- Suitable for packaging liquids with fluidity, no hard particles, no large particles, and no long filamentous substances.
- Suitable for quantitative packaging of various liquids, mainly used in pharmaceuticals, food, cosmetics, agriculture, chemical industries, etc.
- Suitable for liquid quantitative packaging in various retail stores, laboratories, and factories.
- Suitable for users with a wide variety of products, a large filling range, and medium to small batch production.
Specifications
| Pump Type | Gear pump |
| Pump Material | SUS304 (SUS316 is optional) |
| Nozzle Type | Pneumatic nozzle (Ø19mm) |
| Nozzle Quantity | 1 |
| Filling Accuracy | ±0.5-1.0% |
| Filling Capacity | 30-11000ml |
| Max. Flow Rate | ≤13L/min |
| Production Capacity | 100ml: 24BPM 300ml: 16BPM 1000ml: 10BPM (affected by liquid, filling volume, etc.) |
| Speed Level | Fast-Slow (adjustable double speed level) |
| Product Preset | 20 |
| Air Source | 0.4-0.8Mpa |
| Power Source | AC220V; 50/60Hz; 1Phase |
| Motor Power | AC motor 250W |
| Working Mode | Automatic/Manual |
Features
- Wide filling range, different gear pumps allow for the filling capacity of 0-10L/0-35L/0-70L, with the single filling volume freely adjustable, suitable for manufacturers with a wide variety of products.
- Storage of multiple sets of product data ensures convenient setting of different product parameters and quick product switching.
- High-precision gear pump allows for fast filling speed and high accuracy, up to ±0.5%.
- Dual-speed filling allows for fast initial filling followed by slow filling to reduce foam generation during the filling process and improve accuracy.
- The gear pump liquid filling machine can be used as a standalone unit or integrated with an automatic conveying control system to form an automated filling system.
- Long lifespan: well-maintained gear pump filler can typically be used for over eight years.
Configurations
- Gear pump drive motor: Optional 380W/550W motor is suitable for materials with higher viscosity.
- Filling nozzle: Optional pneumatic nozzle, suitable for viscous, oily, and easily penetrable liquids.
- Material contact parts: Optional contact parts made of 316/316L ensure better corrosion resistance.
- Gear pump: Optional high-temperature gear pump (0-100°C) is suitable for filling materials at 40°C.
- Gear pump flow selection: Optional large pump head with a maximum flow rate of 26 liters/min is used for applications requiring large filling volumes.
FAQ
The gear pump liquid filling machine is suitable for quantitatively filling most fluid materials. To accurately determine suitability, buyers need to provide necessary information such as the material's name, fluidity, filling volume, etc. Contact our sales team for assistance in confirming the appropriate machine configuration.
Generally, around 8-10 years. Well-maintained equipment with daily care has a longer lifespan. The equipment runs stably and is durable.
While local service points are limited, buyers may seek assistance from local dealers, if available. Prior to leaving the factory, the machine undergoes complete assembly and testing and is shipped fully assembled, requiring no special installation or debugging. Simply power on the machine for use and reference the manual or instructional videos for parameter settings. In the event of any issues, contact the seller for online guidance and support.
The gear pump liquid filling equipment comes with a 12-month warranty, excluding consumable parts. Within the warranty period, replacement parts are provided at no additional cost (excluding shipping expenses), while reasonable fees apply for parts outside the warranty coverage. Lifetime free remote technical support is also offered for the equipment.
Contact us promptly for assistance in resolving the issue. We can conduct real-time remote fault diagnosis and promptly ship replacement parts if needed.
