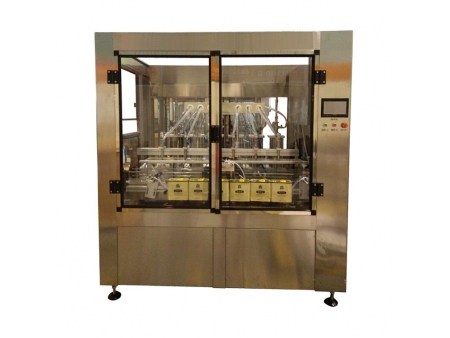

Automatic 8-Head Piston Filler

Piston filler for volumetric dispensing of liquid/viscous liquid/paste into bottles and containers

Piston filling machine is suitable for the quantitative packaging of various liquids, and it handle various semi-solid viscous liquids by using a piston to draw the product from the hopper into the cylinder. This filler mainly consists of a piston pump, drive motor, touch screen PLC, etc. By applying the principle of the piston pump and controlling the metering and speed with a microcomputer, the liquid is filled into containers with precision measurement and a filling accuracy of ≤±1.0%.

Applicable Products

Household productssuch as hand sanitizer, shower gel, soap, hair gel, etc.
Food productssuch as ice cream, yogurt, potato salad, cheese, sour cream, honey, etc.

Applications

Piston filler is mainly applied for dispensing fluid or semi-fluid materials in pharmaceuticals, food, cosmetics, agriculture, chemical industry, and other industries.

Piston filler is suitable for users with a variety of products, a wide range of filling, and small to medium batch production, as well as for quantitative dispensing of materials in various retail stores, laboratories, and factories.

Specifications

Model	HSP-8
Pump Type	Piston pump driven by servo motor
Nozzle Type	Pneumatic nozzle (Ø16mm)
Nozzle Quantity	8
Filling Accuracy	≤±1.0%
Filling Capacity	100-1000ml (or customizable)
Production Capacity	500ml: 1200-1500BPH
Product Preset	30
Air Source	0.5-0.8Mpa
Power Source	AC380V; 50/60Hz; 3Phases
Conveyor Length	1900mm
Conveyor Height	800±50mm
Control Method	Touch Screen
Working Mode	Automatic

Features

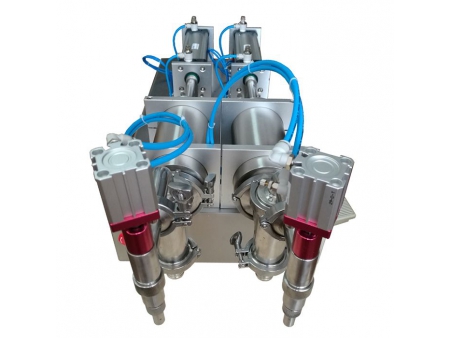

Piston filler utilizes servo motor to drive the piston pump for high-precision filling, with a function to stop filling when there is a missing bottle.

30 sets of parameter storage backup allow for easy replacement of filling measurement by invoking memory data.

Piston filling machine is equipped with an independent conveying system and a stepless frequency conversion speed regulation for smooth operation.

Filling head adopts vacuum back suction or a receiving plate device to ensure no pollution.

Optional

Piston pump range: standard configuration is 100-1000ml; other filling ranges available as options.

Material contact parts: Optional contact parts made of 316/316L material.

Customizable filling nozzles: Pneumatic nozzles: Ø4 Ø8 Ø12 Ø16 Ø19 suitable for viscous, oily, and easily permeable liquids.

FAQ

Piston filling machine is suitable for quantitatively filling most fluids. To accurately determine suitability, buyers need to provide necessary information such as the name of the material, its fluidity, filling volume, etc. and contact our sales team for assistance in confirming the appropriate machine configuration.

While local service points are limited, buyers may seek assistance from local dealers, if available. Prior to leaving the factory, the machine undergoes complete assembly and testing and is shipped fully assembled, requiring no special installation or debugging. Simply power on the machine for use and reference the manual or instructional videos for parameter settings. In the event of any issues, contact the seller for online guidance and support.

Piston filling machine comes with a 12-month warranty, excluding consumable parts. Within the warranty period, replacement parts are provided at no additional cost (excluding shipping expenses), while reasonable fees apply for parts outside the warranty coverage. Lifetime free remote technical support is also offered for the equipment.

Contact us promptly for assistance in resolving the issue. We can conduct real-time remote fault diagnosis and promptly ship replacement parts if needed.
