Heat Shrink Insulation Tube
Request a Quote

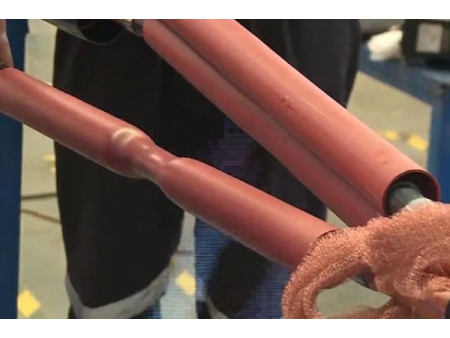

This heat shrink insulation tube is used to link and protect cables up to 42kV. The insulation tube is made of radiation crosslinked polyolefin and serves as a great protective cover. It begins shrinking when the environmental temperature reaches 90 ℃ and completes the process when the temperature reaches 130℃.
Technical Data
| Property | Test Method | Standard Value |
| Tensile Strength | ASTM-D-638 | ≥10MPa |
| Elongation at Break | ASTM-D-638 | ≥350% |
| Tensile Strength After Heat Aging (130℃×168h) | ASTM-D-5510 | ≤±20% |
| Elongation at Break After Heat Aging (130℃×168h) | ASTM-D-5510 | ≤±20% |
| Volume Resistivity | IEC 60093 | ≥1× Ω.cm |
| Dielectric Strength | IEC 60243 | ≥20kV (mm) |
| Dielectric Constant | IEC 60250 | ≤4 |
| Brittle Temperature | ISO 974 | -40℃ |
| Hardness (Shore A) | ISO 868 | ≥80 |
| Heat Shock | 160℃, 4h | No Crack |
| Longitudinal Shrinkage | ASTM-D-2671 | ≤10% |
| Eccentricity | ASTM-D-2671 | ≤30% |
