Features
  • The rubber injection molding machine has two operation modes: manual and semi-automatic. Users can choose the operation mode according to their application needs.
  • Due to PLC control system, this injection machine features a stable and reliable operation with a low failure rate. Customers can choose an Omaron or Siemens PLC system.
  • The CHAP-2500 Rubber injection molding machine features a four-cylinder parallel injection structure, which improves the balance during rubber injection, and cuts down on the longitudinal space of the injection component. As a result, it is easy to remove the injection plunger.
  • This machine's electrical control system ensures stable operation.

Applicable products

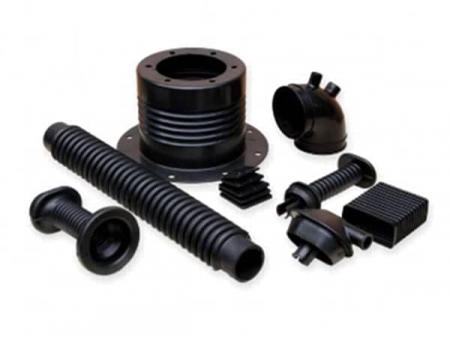

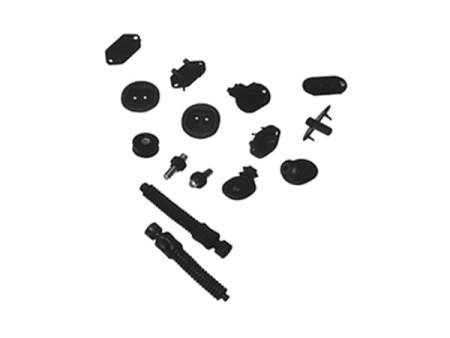

Multilateral, polygonal and other complex rubber products, especially sporting equipment, medical suppliers, automotive supplies, electrical products, insulators and other precise electric power products.

Technical Specifications of Rubber Injection Molding Machine
Item Parameters CHAP-2500
Clamping force 2500 kN
Heating Plate Size 560×630 mm×mm
Heating Plate Space 600 mm
Theoretical Injection Capacity 2700 cm3
Screw Diameter Φ45 mm
Screw Rotational Speed 0~120 r/min
Plunger Diameter Φ95 mm
Injection Pressure 173 MPa
Mold Opening Stroke 500 mm
Motor Power 15 kW
Heating Power 16 kW
External Dimension (L×W×H) 1800X4200X4000
Oil Tank Capacity 400 L
