MEMS 1xN Single Mode Optical Switch
Module1 (1×2 to 1×64)
This Module1 (1×2 to 1×64) MEMS 1xN single mode optical switch offers port configurations of 1×2 to 1×64. This advanced optical switch, based on Micro-Electro-Mechanical System (MEMS) technology, allows channel selection between single input fiber and up to N output fibers.

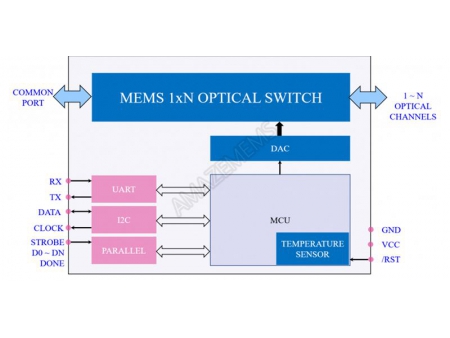

The MEMS 1xN single mode optical switch employs an innovative mechanism where the MEMS mirror rotates to precisely direct optical light to the desired output fiber. This dynamic functionality allows seamless transmission, redirection, and blocking of optical signals, enabling efficient and reliable data routing in optical networks. Its bi-directional switch design further enhances its versatility, making it a valuable asset in various optical applications.
Manufactured by Amazelink, a specialist in MEMS optical switches, this device guarantees performance, reliability, and durability. It adheres to the standards of Telcordia GR-1073-CORE and is RoHS compliant, ensuring its compatibility with industry requirements and regulations.
- Compact size
- High reliability and durability
- Fast switching speed
- Telcordia GR-1073-CORE and RoHS compliant
- Optical communication
- Fiber sensing
- Remote fiber monitoring (working with OTDR or OCM)
- Optical network routing
- Measurement resource sharing
- Optical network protection and restoration
| PARAMETER | UNIT | VALUE | |
| Wavelength | nm | 13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650 | |
| Test Wavelength | nm | 1310 / 1550 / 1625 or 1650 | |
| Insertion Loss | 1 x 2 | dB | ≤ 0.6, typical 0.5 |
| 1 x 4 / 8 | ≤ 0.8, typical 0.6 | ||
| 1 x 12 / 16 | ≤ 1.0, typical 0.9 | ||
| 1 x 24 / 32 | ≤ 1.3, typical 1.1 | ||
| 1 x 48 / 64 | ≤ 1.5, typical 1.2 | ||
| 1 x 96 / 128 | ≤ 2.0, typical 1.6 | ||
| 1 x 256 / 512 | ≤ 2.3, typical 1.8 | ||
| 1 x 1024 | ≤ 2.5, typical 2.1 | ||
| 1 x 2048 | ≤ 2.8, typical 2.3 | ||
| Return Loss | dB | ≥ 45 | |
| Repeatability | dB | ≤ 0.1 | |
| Crosstalk | dB | ≥ 40 | |
| PDL | 2 < N ≤ 64 | dB | ≤ 0.2 |
| 64 < N ≤ 2048 | ≤ 0.4 | ||
| WDL | 2 < N ≤ 64 | dB | ≤ 0.3 |
| 64 < N ≤ 2048 | ≤ 0.6 | ||
| TDL | 2 ≤ N ≤ 16 | dB | ≤ 0.3 |
| 16 < N ≤ 64 | ≤ 0.4 | ||
| 64 < N ≤ 1024 | ≤ 0.7 | ||
| 1024 < N ≤ 2048 | ≤ 0.8 | ||
| Switch Time | 2 ≤ N ≤ 16 | ms | ≤ 5 |
| 16 < N ≤ 64 | ≤ 10 | ||
| 64 < N ≤ 1024 | ≤ 15 | ||
| 1024 < N ≤ 2048 | ≤ 20 | ||
