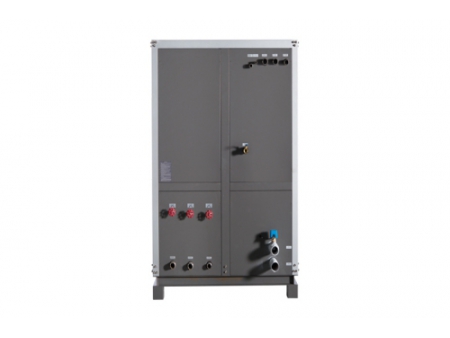

Water-cooled Inverter Scroll Chiller
- Cooling capacity: 3~200kW
- Compressor type: Inverter scroll
- Flow Rate: 4~48 m³/h
This inverter scroll chiller is a water-cooled chiller that can quickly reach the desired temperature within a short time, and achieve comfort conditions with low rotation speed and less power consumption, while ensuring lower temperature fluctuation during operation. It is an energy efficient solution for process cooling applications. The compressor doesn't need to start and stop frequently, thus providing stable running status, precise temperature control, lower sound level and prolonged service life.
Anges water-cooled inverter scroll chillers are available in several models with cooling capacity ranging from 3kW to 200kW. Please tell us your requirements, our professional engineers are delighted to recommend appropriate industrial chiller to meet your specific application needs.
Cooling capacity: 3.88kW~13.95kW
Total input power: 1.53kW~3.54kW
Compressor type: Inverter scroll
Standard flow rate: 4 m³/h
Evaporator: Shell and tube
Cooling capacity: 8.6kW~30.95kW
Total input power: 3.23kW~7.74kW
Compressor type: Inverter scroll
Standard flow rate: 11.4m³/h
Evaporator: Shell and tube
Cooling capacity: 13.2kW~47.52kW
Total input power: 4.22kW~11.30kW
Compressor type: Inverter scroll
Standard flow rate: 12.5m³/h
Evaporator: Shell and tube
Cooling capacity: 17.19kW~61.89kW
Total input power: 5.67kW~14.69kW
Compressor type: Inverter scroll
Standard flow rate: 25m³/h
Evaporator: Shell and tube
Cooling capacity: 20.55kW~73.97kW
Total input power: 6.38kW~17.25kW
Compressor type: Inverter scroll
Standard flow rate: 25m³/h
Evaporator: Shell and tube
Cooling capacity: 25.79kW~92.84kW
Total input power: 8.20kW~21.73kW
Compressor type: Inverter scroll
Standard flow rate: 25m³/h
Evaporator: Shell and tube
Cooling capacity: 34.39kW~123.79kW
Total input power: 10.94kW~28.98kW
Compressor type: Inverter scroll
Standard flow rate: 48m³/h
Evaporator: Shell and tube
Cooling capacity: 41.09kW~147.94kW
Total input power: 12.36kW~34.10kW
Compressor type: Inverter scroll
Standard flow rate: 48m³/h
Evaporator: Shell and tube
| Model | Cooling capacity | Total input power | Compressor type | Standard Flow Rate | Evaporator | ||
| Low frequency | High frequency | Low frequency | High frequency | ||||
AWKV-5 | 3.88kW | 13.95kW | 1.53kW | 3.54kW | Inverter | 4 m³/h | Shell and tube |
AWKV-10 | 8.6kW | 30.95kW | 3.23kW | 7.74kW | Inverter | 11.4m³/h | Shell and tube |
AWKV-15(D) | 13.2kW | 47.52kW | 4.22kW | 11.30kW | Inverter | 12.5m³/h | Shell and tube |
AWKV-20(D) | 17.19kW | 61.89kW | 5.67kW | 14.69kW | Inverter | 25m³/h | Shell and tube |
AWKV-25(D) | 20.55kW | 73.97kW | 6.38kW | 17.25kW | Inverter | 25m³/h | Shell and tube |
AWKV-30(T) | 25.79kW | 92.84kW | 8.20kW | 21.73kW | Inverter | 25m³/h | Shell and tube |
AWKV-40(F) | 34.39kW | 123.79kW | 10.94kW | 28.98kW | Inverter | 48m³/h | Shell and tube |
AWKV-50(F) | 41.09kW | 147.94kW | 12.36kW | 34.10kW | Inverter | 48m³/h | Shell and tube |
* Please download for details.
- Minimal starting current of drive motor enables the impact on the power grid to be greatly decreased;

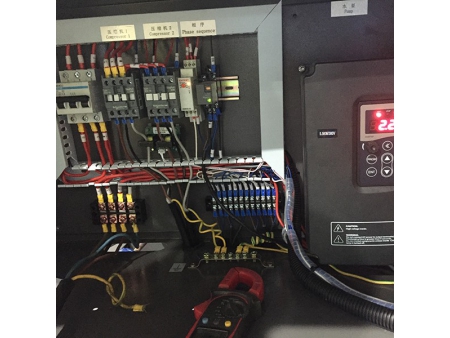

- PLC control, touch screen and user-friendly HMI interface, easy to operate;
- Adopting world's well-known compressors, such as Danfoss, Copeland and Panasonic, and our main electrical components are from Schneider;
- Shell & tube condenser is adopted, simple structure and high stability of heat transfer;
- Shell & tube evaporator is used as standard configuration, featuring high efficiency, excellent energy saving and reliable stability; Other evaporators are also available as per your request, like stainless steel plate evaporator;
- Eco-friendly refrigerant R410A;
- Built-in water pump and water tank (optional) can be easily installed and directly put into use by simply connecting water pipes and power supply;
- Designed with multiple protection functions, such as phase failure protection, flow protection, high/low pressure protection, overheat protection, providing high reliability, low failure rate and excellent performance;

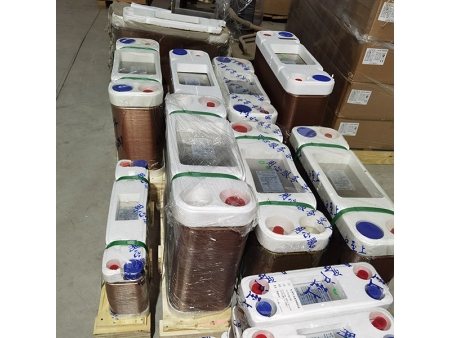

- Stainless steel plate evaporator
- Common water pump or 4-8bar high pressure pump
- Water tank
- Low noise option

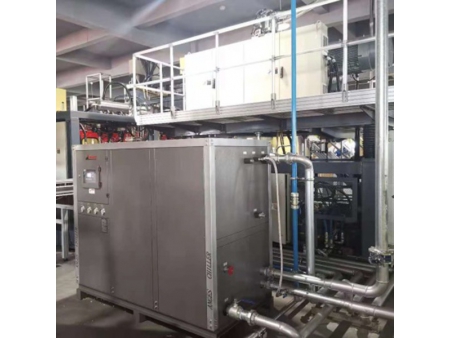

Vacuum Coating
During the vacuum coating process, the temperature of the vacuum coater must be strictly controlled to ensure the high quality of parts being coated. Industrial chillers can perfectly respond to the requirements, by which the chilled water temperature can be precisely controlled within a range of 5℃-30℃, achieving high-precision and high-efficiency temperature control to ensure the correct adhesion of surface coating.
Chemical Grinding
The grinding process of the grinding machine will change the molecular structure and produce high temperature which can affect the quality of raw materials and production efficiency. The water chiller can control the temperature, resulting in increased production and keeping grinding machine from damaging.
