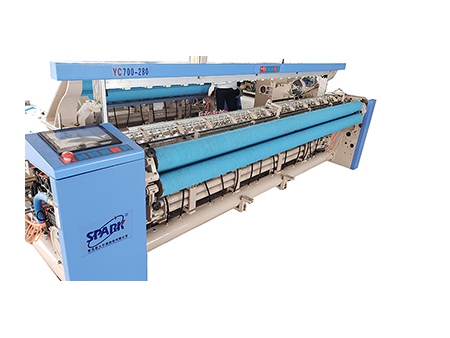

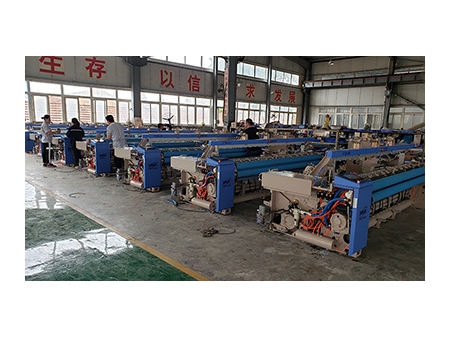

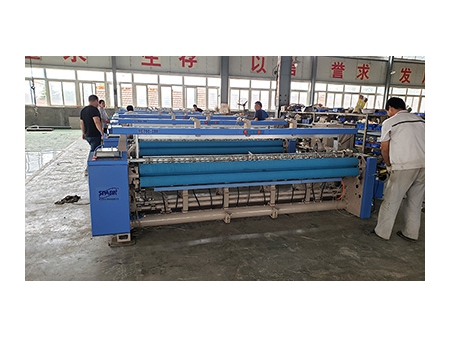

YC700 Air jet loom

Request a Quote

View All: http://machinery-weaving.com/1-2-yc700-air-jet-loom.html

The YC700 air jet loom is a special weaving machine used for the production of glass fiber fabrics. Developed using the YC600 air jet loom as the base, this air jet weaving machine features a durable and stable box-type wall structure and a multi-support weight balanced beating system. To meet the production needs for woven glass fiber fabrics, the back rest has been changed, with a special yarn cutter and air suction device added. The air jet weaving machine is suitable for the production of thermal insulation material, fire-proof cloth, insulated PCB substrate, etc.

Features

The back rest has been altered to meet glass fiber weaving needs.

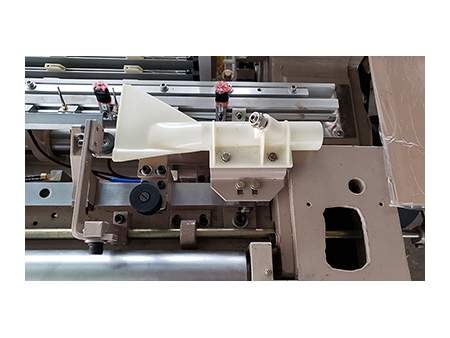

A special yarn cutter and an air suction device have been added.
The high-speed response solenoid valve and optimized air jet control system are equipped to reduce the air consumption by 35%.

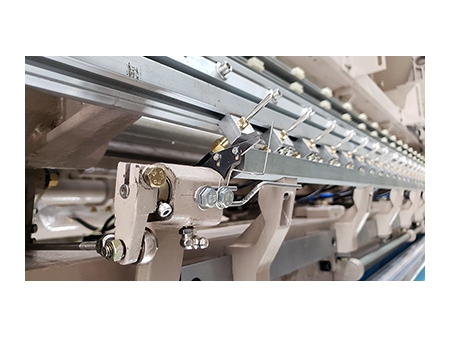

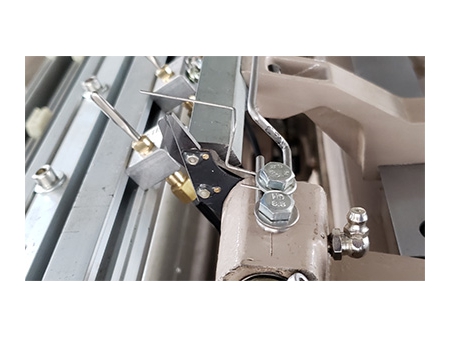

The high-speed weft insertion system consists of a TOYOTA 810 main nozzle, swing nozzle and sub nozzle.
Different take up and let off options are available to meet different customer production requirements, including electronic let off, electronic take up, mechanical let off and mechanical take up. For the shedding mechanism, crank shedding, cam shedding, dobby shedding or electronic jacquard shedding are optional.

Machine specifications

Item		Specifications	Spare Parts
Reed Width	Nominal	150, 170, 190, 210, 230, 250, 280, 340, 360, 390
Reed Width	Effective	Nominal: 0~60cm (150-250) 0~80cm (>280)
Weaving Range		Glass fiber
Weft selection		1, 2, 3, 4 & 6 Colors
Motor	Start mode	Super speed start
		Press the start/stop button to slow action forward/rear
		Press the link& start button at the same time to start
	Power	2.8kw, 3.0kw, 3.7kw, 4.5kw, 5.5kw
Weft insertion	Method	Main nozzle Swing Nozzle Sub nozzle U type reed	WBS(Weft brake system)
	Control	Import high frequency sub nozzle/ computer program control
	Sub nozzle	Integrated flow sub nozzle
	Feeder	Electric control loop feeder	Balloon prevent device

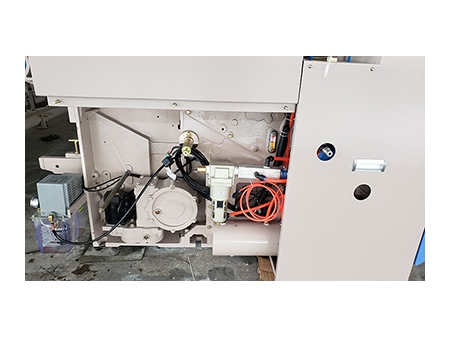

Beating	Beating motion	Dual oil bath box type 4-bar/ 6bar/ eccentric beating motion
		Solid beating system
		Multi support brick and balance weight
Shedding		Crank/ Plain shedding
		Cam shedding
		Electronic Jacquard shedding
		Dobby Shedding	Upper dobby shedding
Let Off		Electric servo let off	Double Warp Beam
		Dual back beam
		Positive/ negative let off
	Flange dia.	800, 914, 1000 mm
Take up	Take up	Electric servo/ mechanical take-up
	Fabric rolling	Inside rolling (Max. 600mm)/ Outside rolling
	Temple	Upper/ underneath
Selvedge		Dual sides planet selvedge/ electric
Lubrication		Motion box is oil bath, others are centralized lubricating
Shut down device	Weft breakage	Reflecting double sensor W1, W2
	Warp breakage	Control system warp break detector, LED display
	Others	Selvedge yarn/ yarn end break stop motion
	Shutdown display	Screen display, multi- function shutdown display lights
Weft cutter		Mechanical cutter, electronic cutter
Electric control system		High resolution large VGA color touch display, DSP motherboard, WIFI connect.
