H-B2 Solid Carbide End Mill for Hardened Steel Machining - Ball Nose - 2 Flutes
Request a Quote
Request a quote
Unit: mm
| Order Code | Cutting Diameter (D) | Ball Radius (R) | Length of Cut (Lc) | Overall Length (L) | Shank Diameter (d) | Type |
H-B2-01002 | 1 | 0.5 | 2 | 50 | 4 | A |
H-B2-01503 | 1.5 | 0.75 | 3 | 50 | 4 | A |
H-B2-02004 | 2 | 1 | 4 | 50 | 4 | A |
H-B2-02505 | 2.5 | 1.25 | 5 | 50 | 4 | A |
H-B2-03006 | 3 | 1.5 | 6 | 50 | 4 | A |
H-B2-63006 | 3 | 1.5 | 6 | 50 | 6 | A |
H-B2-04008 | 4 | 2 | 8 | 50 | 4 | B |
H-B2-64008 | 4 | 2 | 8 | 50 | 6 | A |
H-B2-05010 | 5 | 2.5 | 10 | 50 | 6 | A |
H-B2-06012 | 6 | 3 | 12 | 50 | 6 | B |
H-B2-07014 | 7 | 3.5 | 14 | 60 | 8 | A |
H-B2-08016 | 8 | 4 | 14 | 60 | 8 | B |
H-B2-10020 | 10 | 5 | 20 | 75 | 10 | B |
H-B2-12024 | 12 | 6 | 24 | 75 | 12 | B |
H-B2-16032 | 16 | 8 | 32 | 100 | 16 | B |

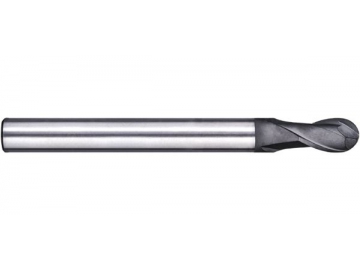

Type A: the cutting diameter is smaller than the shank diameter

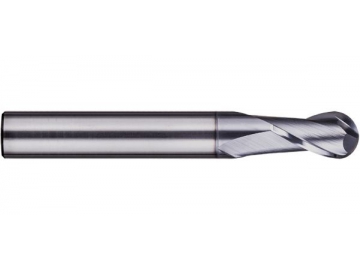

Type B: the cutting diameter is equal to the shank diameter
