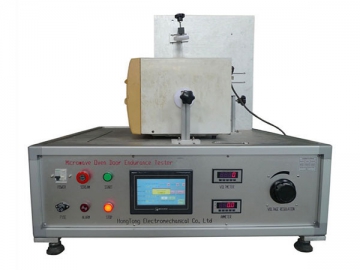

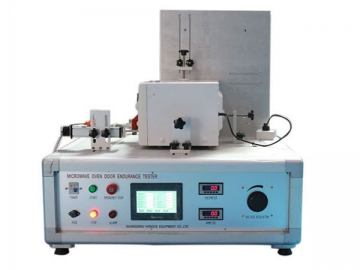

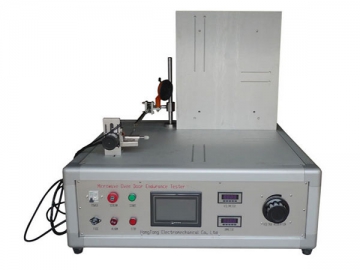

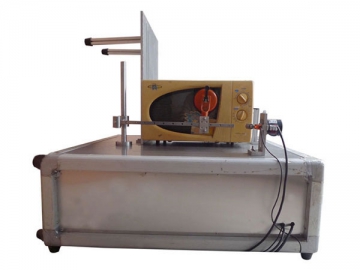

Microwave Oven Door Endurance Tester HJ0637
Request a Quote
View All: http://hctestequipment.com
Standard
IEC 60335-2-25 household and similar electrical appliances – safety: part 2-25:particular requirements for microwave ovens, including combination microwave ovens, clause 18.
Application
The device is used to test the mechanical endurance of microwave oven door systems.
Test Sample
Microwave oven, oven
Feature
The equipment is easy to use and tests the door hinges and door sealing systems for microwave doors.
| Control | PLC |
| Display | True color liquid crystal display (7 Inch Touch screen) |
| Frame structure | High grade aluminium profile |
| Power supply | AC 220V 50HZ |
| Test times | 0-999999 preset, automatic stop when test time finished |
| Open/Close time | 0-9999S preset |
| Open/Close rate | Adjustable |
| Open angle | 0-180°preset |
| Station | One station(left open or top open) |

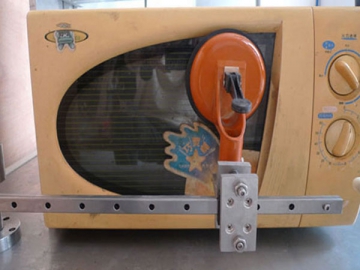

| Door unlock | Eccentric wheel mechanism automatic unlock the door lock |
| Dimension | 1000*1000*800mm |
| Load | provided with a 10A power socket, can be used for samples below 2000W |
