Lockstitch Sewing Machine, HT9210TC/ HT9250TC Manufacturer

Lockstitch Sewing Machine, HT9210TC/ HT9250TC

Request a Quote

View All: http://hikarisewingmachine.com/1-5-double-needle-with-single-needle-bar.html

Computerized direct drive double needle sewing machine with single needle bar

Our computerized direct drive double needle sewing machine with a single needle bar comes with the dual needle functionality, allowing simultaneous stitching with two needles to boost production efficiency. Whether handling shirts, jackets, jeans, or other clothing items, this machine completes various sewing tasks with speed, accuracy, and reliability, delivering higher productivity and high-quality stitching for garment manufacturers.

Specifications

Model	HT9210TC-7P-5/AK	HT9210TCH-7P-5/AK	HT9250TC-7P-5/AK	HT9250TCH-7P-5/AK
Oil supply	Automatic oil supply	Automatic oil supply	Automatic oil supply	Automatic oil supply
Needle	DP×5	DP×5	DP×5	DP×5
Stitch length	0-5mm	0-5mm	0-7mm	0-7mm
Presser foot lifting height	7-16	7-16	7-16	7-16
Speed of starting backstitch, reinforcement stitch, and continuous backstitch for reinforcement	250-1800rpm	250-1800rpm	250-1800rpm	250-1800rpm
Speed of finishing backstitch and reinforcement stitch	250-1800rpm	250-1800rpm	250-1800rpm	250-1800rpm
Feed dog height	1mm	1mm	1mm	1mm
Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor
Power control	Microprocessor	Microprocessor	Microprocessor	Microprocessor
Speed (S.P.M)	4000 r/min	3000 r/min	3000 r/min	3000 r/min
Dimensions	725x320x680mm	725x320x680mm	725x320x680mm	725x320x680mm

Features

2. Efficient Plain Knife Trimmer The sewing machine is equipped with a high-efficiency plain knife trimmer, enhancing your sewing efficiency.

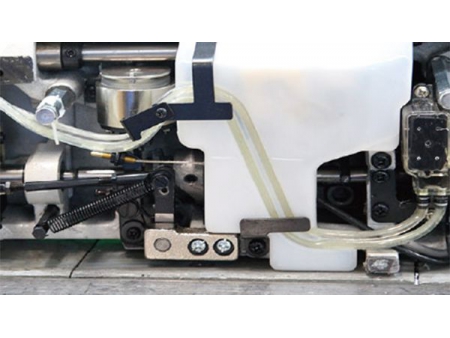

2. Micro Lubrication Technology Ensure sufficient lubrication for the hook, improving the machine's stability and durability.

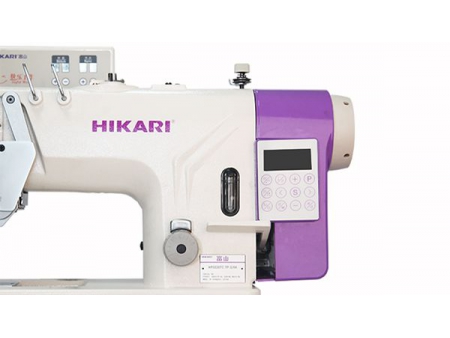

2. Integrated Design and Upgraded Enhance both hardware and software performance for improved sewing quality. The control panel combines technology and practicality seamlessly.

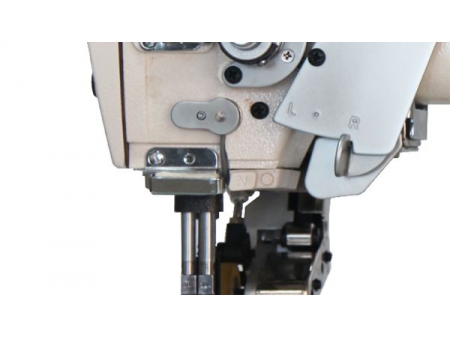

2. Optimized Presser Lift Foot Structure Rationalize output force, minimize damage to the equipment, and extend the machine's lifespan.
2. Added Thread Clipping Function During thread clipping at the start of sewing, the thread tail is placed under the fabric, reducing the risk of tangled threads and ensuring a smoother sewing process.
