Lockstitch Sewing Machine, HT9220TC/ HT9260TC Manufacturer

Lockstitch Sewing Machine, HT9220TC/ HT9260TC

Request a Quote

View All: http://hikarisewingmachine.com/1-6-double-needle-with-split-needle-bar.html

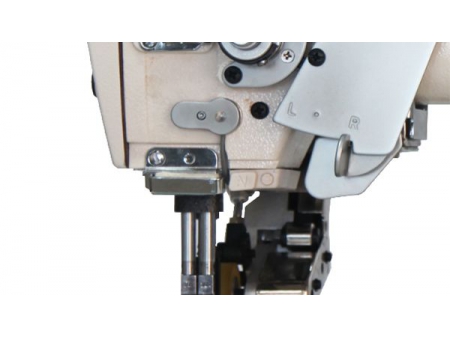

Computerized direct drive double needle sewing machine with split needle bar

Our computerized direct drive double needle sewing machine with a split needle bar is an advanced sewing equipment model. It adopts computerized direct drive technology, ensuring stable, efficient, and precise operation to meet high-demand sewing tasks. Its unique split needle bar design allows simultaneous double-needle flat stitching, enhancing production efficiency and stitching stability. This sewing machine is also equipped with a high-efficiency plain knife trimmer, enhancing your sewing efficiency.

Specifications

Model	HT9220TC-7P-5/AK	HT9220TCH-7P-5/AK	HT9260TC-7P-5/AK	HT9260TCH-7P-5/AK	HT9260TC-7P-5
Oil supply	Automatic oil supply	Automatic oil supply	Automatic oil supply	Automatic oil supply	Automatic oil supply
Needle	DP×5	DP×5	DP×5	DP×5	DP×5
Stitch length	0-5mm	0-5mm	0-7mm	0-7mm	0-5mm
Presser foot lifting height	7-16	7-16	7-16	7-16	7-16
Speed of starting backstitch, reinforcement stitch, and continuous backstitch for reinforcement	250-1800rpm	250-1800rpm	250-1800rpm	250-1800rpm	250-1800rpm
Speed of finishing backstitch and reinforcement stitch	250-1800rpm	250-1800rpm	250-1800rpm	250-1800rpm	250-1800rpm
Feed dog height	1mm	1mm	1mm	1mm	1mm
Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor
Power control	Microprocessor	Microprocessor	Microprocessor	Microprocessor	Microprocessor
Speed (S.P.M)	3000 r/min	3000 r/min	3000 r/min	3000 r/min	3000 r/min
Dimensions	725x320x680mm	725x320x680mm	725x320x680mm	725x320x680mm	725x320x680mm

Features

2. Micro Lubrication Technology Ensure sufficient lubrication for the hook, improving the machine's stability and durability.

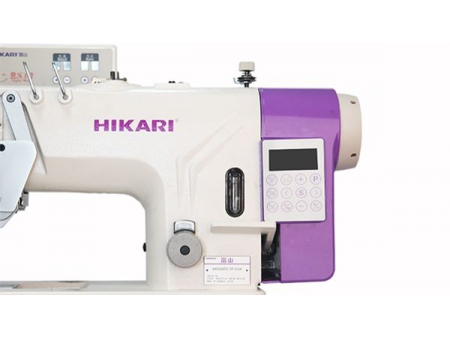

2. Integrated Design and Upgraded Enhance both hardware and software performance for improved sewing quality. The control panel combines technology and practicality seamlessly.
2. Optimized Presser Lift Foot Structure Rationalize output force, minimize damage to the equipment, and extend the machine's lifespan.
2. Added Thread Clipping FunctionDuring thread clipping at the start of sewing, the thread tail is placed under the fabric, reducing the risk of tangled threads and ensuring a smoother sewing process.
