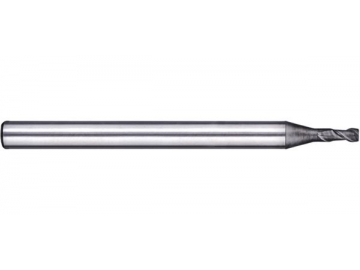

G-SN2 Solid Carbide End Mill for Graphite Machining - Square End - 2 Flutes - Long Neck
Request a Quote
Request a quote
Unit: mm
| Order Code | Cutting Diameter (D) | Length of Cut (Lc) | Neck Length (L1) | Neck Diameter (d2) | Overall Length (L) | Type |
G-SN2-01005 | 1 | 3 | 5 | 0.95 | 60 | A |
G-SN2-01510 | 1.5 | 6 | 10 | 1.44 | 60 | A |
G-SN2-02015 | 2 | 8 | 15 | 1.92 | 60 | A |
G-SN2-02020 | 2 | 8 | 20 | 1.92 | 60 | A |
G-SN2-03015 | 3 | 12 | 15 | 2.9 | 60 | A |
G-SN2-04020 | 4 | 16 | 20 | 3.9 | 60 | B |
G-SN2-04025 | 4 | 16 | 25 | 3.9 | 75 | B |
G-SN2-04040 | 4 | 16 | 40 | 3.9 | 75 | B |
G-SN2-05030 | 5 | 20 | 30 | 4.9 | 75 | B |
G-SN2-06030 | 6 | 24 | 30 | 5.9 | 75 | A |
G-SN2-08040 | 8 | 24 | 40 | 7.9 | 150 | B |
G-SN2-10040 | 10 | 25 | 40 | 9.8 | 150 | B |
G-SN2-12040 | 12 | 25 | 40 | 11.8 | 150 | B |
G-SN2-12060 | 12 | 25 | 60 | 11.8 | 150 | B |
Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
