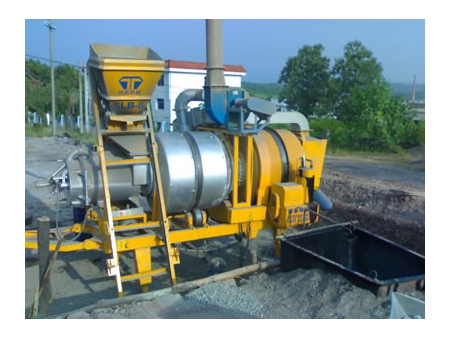

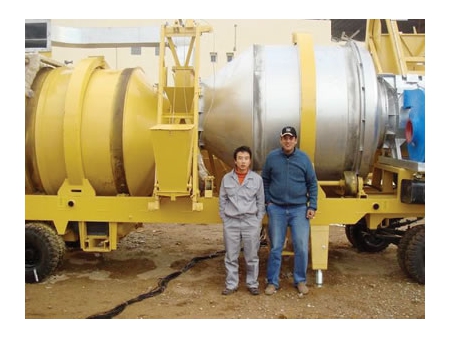

Mobile Asphalt Mixing Plant, SLB Series

Mobile Asphalt Mixing Plant, SLB Series
Request a Quote
Capacity range: 8-30 t/h

Model: SLB, Drum Type

Main Applications of Mobile Asphalt Mixing Plant
With a huge capability to manufacture an impressive amount of quality asphalts within a short time, this kind of asphalt mixing equipment is widely used as a indispensable role in construction and maintenance work of asphalt roads.

Specifications
Model SLB-8 SLB-10 SLB-15 SLB-20 SLB-30
Rated capacity 8t/h 10t/h 15t/h 20t/h 30t/h
Total power Fuel 23.7kW 24.3kW 33kW 46.5kW 60kW
Coal 40kW 41kW 54kW 70kW 90.3kW
Discharge temperature 120-180°C (can be adjusted) 120-180°C (can be adjusted) 120-180°C (can be adjusted) 120-180°C (can be adjusted) 120-180°C (can be adjusted)
Fuel consumption Fuel oil: 5-7.5kg/t Coal:13-15kg/t Fuel oil: 5-7.5kg/t Coal:13-15kg/t Fuel oil: 5-7.5kg/t Coal:13-15kg/t Fuel oil: 5-7.5kg/t Coal: 13-15kg/t Fuel oil: 5-7.5kg/t Coal: 13-15kg/t
Optional components Aggregate feed system, finished asphalt storage silo, coal mill, water dust collector, baghouse dust collector, control room, bitumen heating tank
