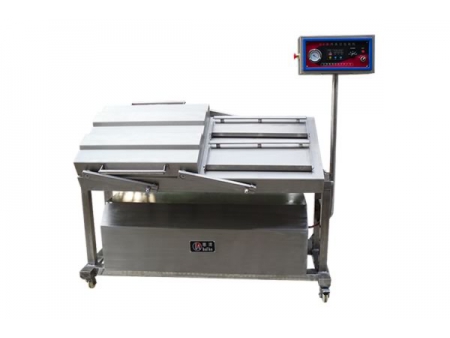

Double Chamber Vacuum Packaging Machine

Double Chamber Vacuum Packaging Machine
Double Chamber Vacuum Packaging Machine
Double Chamber Vacuum Packaging Machine
Request a Quote

Packing Sample Pictures

Vacuum packing is a packaging method that removes air from the bag before sealing, to realize a vacuum environment inside the bag. By doing so, the packed product will be isolated from oxygen and show a good resistance to humidity, rust, mould, corrosion, bug and contamination. The storage time and refreshing time is thus extended, simplifying the transport work.

The double chamber vacuum packaging machine provided by our company is appropriate for using plastic composite film and aluminum foil laminated film to pack food, fruit, local products, medicine, chemicals, precise equipment, garment, hardware, electronic products and other solid, powder and liquid products.

Technical Parameters of Vacuum Packaging Machine with Double Chamber
Model DZ-500/2S DZ-600/2S DZ-700/2S DZ-800/2S
Power supply 380V 50HZ 2Kw 380V 50HZ 2.2Kw 380V50HZ 2.7Kw 380V 50HZ 4Kw
Pressure ≤1Kpa ≤1Kpa ≤1Kpa ≤1Kpa
Vacuum chamber size 620×540×125mm 720×660×115mm 720×600×140mm 920×780×220mm( bar spacing: 530mm)
Sealing bar size 500×(8-10)mm×4 bars 600×(8-10)mm×4 bars 700×10/2 2×2 bars 800×(8-10)mm×4 bars
Packaging capacity 90-360 times/h 90-360 times/h 180-300 times/h 1-5 times/min
Vacuum chamber 2 2 2 2
Machine weight 230kg 300kg 380kg 380kg
Machine dimensions 1220×680×900mm 1425×720×950mm 1425×720×950 1830×910×1100mm
