Universal Gravity Conveyor Roller
Request a Quote
AL1200
Non-powered rollers for gravity roller conveyor
Universal gravity conveyor rollers are mainly made of stainless steel, featuring corrosion resistance, high temperature resistance, and pressure resistance. Some non-powered rollers are made of PVC material, which offers excellent acid and corrosion resistance, lightweight, and easy installation.

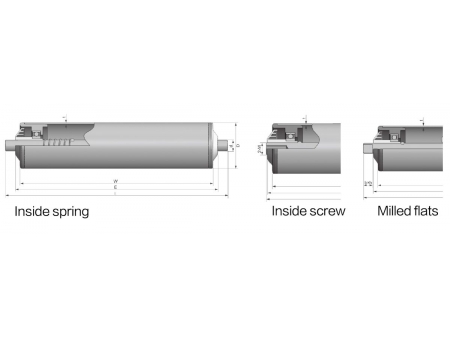

Inside spring
Inside screw
Milled flats
Inside screw
Milled flats
Applications
Non-powered roller is suitable for light and medium-duty non-powered (gravity flow) conveying tasks in warehousing, packaging handling, manufacturing, and distribution applications.
Features
- Utilizes nylon plastic steel bearing plate assembly
- Uses standard deep groove ball bearings
- Inner and outer flanges of bearing can be selected in an anti-static style.
- Has a certain dust and moisture resistance capability
- Low noise, flexible rotation, and pleasing aesthetics
- Temperature range: -5℃ to 40℃
Technical Data
| Tube Diameter (D) | Tube Thickness (T) | Axis Diameter (d) | Tube Material | |||
| Galvanized Steel | Stainless Steel | Aluminum Alloy | PVC | |||
| 25 | 1.2/1.5 | 8 | √ | √ | ||
| 32 | 1.2/1.5 | 10 | √ | √ | ||
| 38 | 1.2/1.5 | 12/S11 | √ | √ | ||
| 50 | 1.5 | 12/15/S11 | √ | √ | √ | |
| 50 | 2 | 12/15/S11 | √ | √ | ||
| 50 | 2.5 | 12/15/S11 | √ | √ | √ | |
| 50 | 3 | 12/15/S11 | √ | √ | ||
| 60 | 1.5/2 | 12/15/S11 | √ | √ | ||
| 76 | 3 | 20 | √ | √ | ||
