1-Piece Ball Valve

Request a Quote

View All: http://custom-casting.com/2-1-1piece-ball-valve.html

Working Pressure: 1000 PSI (PN63)
Thread: ANSI B 2.1, BS21, ISO7/1
Temperature Rating: -25℃ to 180℃
Material: CF8M, CF8, CF3M, WCB
Test Standard: API 598, EN 12266

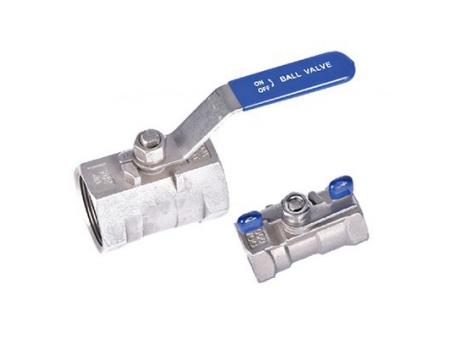

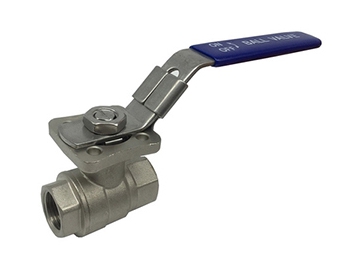

The 1-piece ball valve has one body part making it a robust and cost effective option. It adopts an integral structure, with a ball-shaped element rotating around the valve body for opening and closing. Made of all stainless steel, it has good corrosion resistance. The one piece ball valve is equipped with a handle for operation, to achieve a 90-degree switch. One-piece ball valve has a small size, light weight, and compact structure, resulting in easy opening and closing.

Applications

This 1-piece ball valve is mainly used to shut off or connect pipeline and equipment media. The ball valve has low fluid resistance, making it suitable for cutting off and distributing the flow, or changing the flow direction of liquids, gases, and oil in low-pressure and atmospheric pressure pipeline systems.

Material List

Item	Part	Material					Qty.
1	Body	A216-WCB		A351-CF8		A351-CF8M	1
2	Cap	A216-WCB		A351-CF8		A351-CF8M	1
3	Seat	PTFE					2
4	Ball	304	304		316		1
5	Stem	304	304		316		1
6	Thrust Washer	PTFE					1
7	Packing	PTEE					1
8	Gland Nut	304	304		304		1
9	Handle	304	304		304		1
10	Handle Cover	Plastic					1
11	Nut	304	304		304		1
12	Spring Washer	304	304		304		1

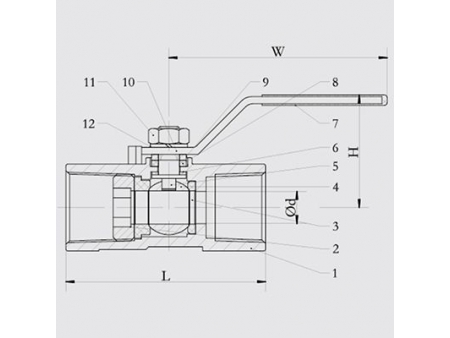

Dimensions (unit: mm)

Size		Ød	L	H	W	N.M	Kgs
DN6	1/4"	5	40	33	67	4	0.06
DN10	3/8"	7	44	36	67	4	0.08
DN15	1/2"	9	57	37	93	6	0.16
DN20	3/4"	12.5	59	42	93	6	0.26
DN25	1"	15	71	52	103	8	0.38
DN32	1-1/4"	20	78	56	103	10	0.65
DN40	1-1/2"	25	82	65	125	14	0.86
DN50	2"	32	100	70	125	15	1.40

The one-piece ball valve consists of a solid valve body with two openings, threads for screw-in connections, and a manual handle or actuator for operation.

The ball valve adjusts flow size and flow closure by using the ball, providing better control and sealing. The gate valve controls flow on/off by moving the gate up or down.

Our company primarily uses stainless steel for flow control valves, including materials such as alloy steel, high-alloy steel, heat-resistant stainless steel, duplex stainless steel, and corrosion-resistant steel.

80% of our industrial valves are exported to the United States, Japan, South Korea, the United Kingdom, Canada, Australia, etc.

As a professional stainless steel casting foundry, we offer precision investment casting, sand casting, and machining services for various industry sectors, in addition to the field of flow control valves.
