2-Piece Flanged Ball Valve (DIN PN16)

2-Piece Flanged Ball Valve (DIN PN16)
2-Piece Flanged Ball Valve (DIN PN16)
Request a Quote
View All: http://custom-casting.com/2-6-3-2piece-Flanged-Ball-Valve.html
  • Flange: 1/2"-2" (PN16/25/40):DIN2543/2544/2545
    2-1/2"-4(PN16):DIN2543
  • Face to Face Length: DIN3202-F4
  • Mounting Pad: ISO 5211
  • Working Pressure: 1/2"-2":PN16/25/40,2-1/2"-4":PN16
  • Temperature Rating: -25℃ to 180℃
  • Material: CF8M, CF8, CF3M, WCB
Material List
Item Part Material Qty.
1 Body A216-WCB A351-CF8 A351-CF8M 1
2 Cap A216-WCB A351-CF8 A351-CF8M 1
3 Ball 304 304 316 1
4 Seat RPTFE 2
5 Stem 304 304 316 1
6 Thrust Washer PTFE 1
7 O-ring Viton 1
8 Packing PTFE 1
9 Gland Nut 304 1
10 Belleville Washer 301 2
11 Nut 304 2
12 Nut Stopper 304 1
13 Plate 304 1
14 Handle 304 1
15 Handle Cover PLASTIC 1
16 Lock 304 1
17 Gasket PTFE 1
18 Bolt 304 4(6.8)

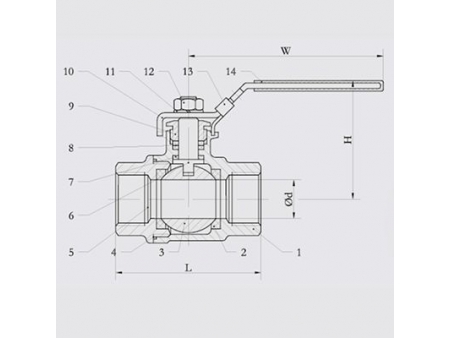

Dimensions (unit: mm)
Size Ød L T F D1 D2 D3 n- Ødl H W P ISO5211 Standard N.M Kgs
DN15 1/2" 15 115 14 2 95 65 45 4-14 80 145 9 F03/F04 5 2.91
DN20 3/4" 20 120 16 2 105 75 58 4-14 85 145 9 F03/F04 8 3.38
DN25 1" 25 125 18 2 115 85 68 4-14 95 160 11 F04/F05 10 3.73
DN32 1-1/4" 32 130 18 2 140 100 78 4-18 108 160 11 F04/F05 14 4.95
DN40 1-1/2" 38 140 18 3 150 110 88 4-18 114 185 14 F05/F07 18 6.10
DN50 2" 50 150 20 3 165 125 102 4-18 124 185 14 F05/F07 25 8.90
DN65 2-1/2" 65 170 18 3 185 145 122 4-18 148 230 17 F07/F10 48 12.80
DN80 3" 76 180 20 3 200 160 138 8-18 158 230 17 F07/F10 75 18.90
DN100 4" 94 190 20 3 220 180 158 8-18 191 320 17 F07/F10 110 26.60
