2-Piece Flanged Ball Valve (ANSI/ASME 150LB)

2-Piece Flanged Ball Valve (ANSI/ASME 150LB)
2-Piece Flanged Ball Valve (ANSI/ASME 150LB)
Request a Quote
View All: http://custom-casting.com/2-6-2-2piece-flanged-ball-valve.html
  • Flange: ASME B 16.5
  • Face to Face Length: ANSI 16.10
  • Mounting Pad: ISO 5211
  • Working Pressure: 1/2"-2":PN16/25/40,2-1/2"-4":PN16
  • Temperature Rating: -25℃ to 180℃
  • Material: CF8M, CF8, CF3M, WCB
Material List
Item Part Material Qty.
1 Body A216-WCB A351-CF8 A351-CF8M 1
2 Cap A216-WCB A351-CF8 A351-CF8M 1
3 Ball 304 304 316 1
4 Seat RPTFE 2
5 Stem 304 304 316 1
6 Thrust Washer PTFE 1
7 O-ring Viton 1
8 Packing PTFE 1
9 Gland Nut 304 1
10 Belleville Washer 301 2
11 Nut 304 2
12 Nut Stopper 304 1
13 Plate 304 1
14 Handle 304 1
15 Handle Cover PLASTIC 1
16 Lock 304 1
17 Gasket PTFE 1
18 Bolt 304 4(6.8)

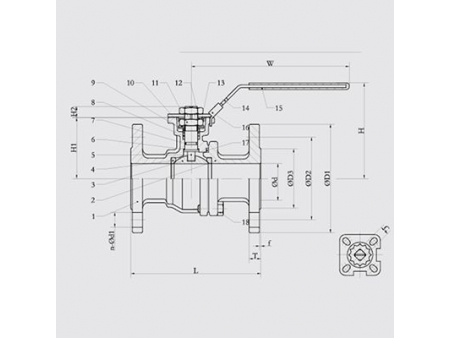

Dimensions (unit: mm)
Size Ød L T F D1 D2 D3 n- Ødl H W P ISO5211 Standard N.M Kgs
DN15 1/2" 15 108 9.7 1.6 89 60.5 35 4-16 80 145 9 F03/F04 5 1.54
DN20 3/4" 20 117 10.5 1.6 98 70 43 4-16 85 145 9 F03/F04 8 1.99
DN25 1" 25 127 11.2 1.6 108 79 51 4-16 95 160 11 F04/F05 10 2.82
DN32 1-1/4" 32 140 12.7 1.6 117 89 63.5 4-16 108 160 11 F04/F05 14 3.89
DN40 1-1/2" 38 165 14.7 2 127 98 73.2 4-16 114 185 14 F05/F07 18 5.05
DN50 2" 50 178 16.3 2 152 121 92 4-19 124 185 14 F05/F07 25 7.15
DN65 2-1/2" 65 190 17.9 2 178 140 104.7 4-19 148 230 17 F07/F10 48 13.91
DN80 3" 76 203 19.5 2 190 152 127 4-19 158 230 17 F07/F10 75 15.90
DN100 4" 94 229 24.3 2 229 191 157.2 8-17 191 320 17 F07/F10 110 26.40
