3-Piece Flanged Ball Valve (DIN PN16)
Request a Quote
- Flange: DIN2545
- Face to Face Length: DIN3202-F1
- Working Pressure: PN40
- Temperature Rating: -25℃ to 180℃
- Material: CF8M, CF8, CF3M, WCB

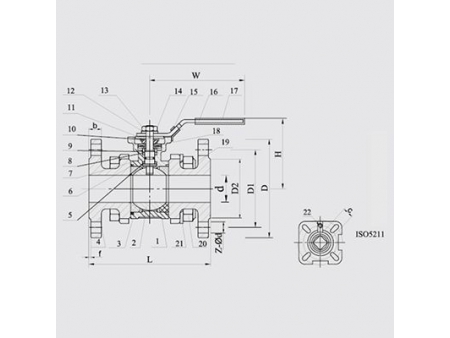

Material List
| Item | Part | Material | Qty. | ||
| 1 | Body | A216-WCB | A351-CF8 | A351-CF8M | 1 |
| 2 | Ball | 304 | 304 | 316 | 1 |
| 3 | Seat | PTFE/RPTFE | 2 | ||
| 4 | Cap | A216-WCB | A351-CF8 | A351-CF8M | 2 |
| 5 | Thrust Washer | PTFE | 1 | ||
| 6 | Gasket | PTFE | 2 | ||
| 7 | O-ring | Viton | 1 | ||
| 8 | Packing | PTFE | 1 | ||
| 9 | Gland Nut | 304 | 1 | ||
| 10 | Stopper Nut | 304 | 1 | ||
| 11 | Tab Washer | 304 | 1 | ||
| 12 | Spring Washer | 304 | 1 | ||
| 13 | Stem | 304 | 304 | 316 | 1 |
| 14 | Nut | 304 | 2 | ||
| 15 | Lock | 304 | 1 | ||
| 16 | Handle | 304 | 1 | ||
| 17 | Handle Cover | Plastic | 1 | ||
| 18 | Belleville Washer | 301 | 2 | ||
| 19 | Bolt | 304 | 4(6) | ||
| 20 | Nut | 304 | 8(12) | ||
| 21 | Spring Washer | 304 | 8(12) | ||
| 22 | Stop Pin | 304 | 1 | ||
| Size | Ød | D | L | H | W | C | D1 | D2 | b | f | ISO5211 Standard | Z-Ødl | N.M | Kgs | |
| DN15 | 1/2" | 15 | 95 | 130 | 88 | 146 | 9 | 65 | 45 | 16 | 2 | 9 | 4-Ø14 | 5 | 2.00 |
| DN20 | 3/4" | 20 | 105 | 150 | 90 | 146 | 11 | 75 | 58 | 18 | 2 | 9 | 4-Ø14 | 8 | 3.10 |
| DN25 | 1" | 25 | 115 | 160 | 96 | 153 | 11 | 85 | 68 | 18 | 2 | 11 | 4-Ø14 | 10 | 3.70 |
| DN32 | 1-1/4" | 32 | 140 | 180 | 105 | 153 | 14 | 100 | 78 | 18 | 2 | 11 | 4-Ø18 | 14 | 5.60 |
| DN40 | 1-1/2" | 40 | 150 | 200 | 120 | 217 | 14 | 110 | 88 | 18 | 3 | 14 | 4-Ø18 | 18 | 6.90 |
| DN50 | 2" | 50 | 165 | 230 | 130 | 217 | 14 | 125 | 102 | 20 | 3 | 14 | 4-Ø18 | 25 | 9.20 |
| DN65 | 2-1/2" | 65 | 185 | 290 | 160 | 251 | 17 | 145 | 122 | 22 | 3 | 17 | 8-Ø18 | 48 | 5.60 |
| DN80 | 3" | 80 | 200 | 310 | 175 | 251 | 17 | 160 | 138 | 24 | 3 | 17 | 8-Ø18 | 75 | 20.00 |
| DN100 | 4" | 100 | 235 | 350 | 200 | 291 | 17 | 190 | 162 | 24 | 3 | 17 | 8-Ø22 | 110 | 27.20 |
