Visual Positioning Machine, LY-600CCD
Request a Quote
Suitable for use in rigid box manufacturing line

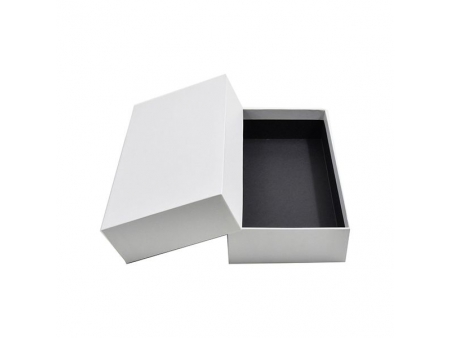

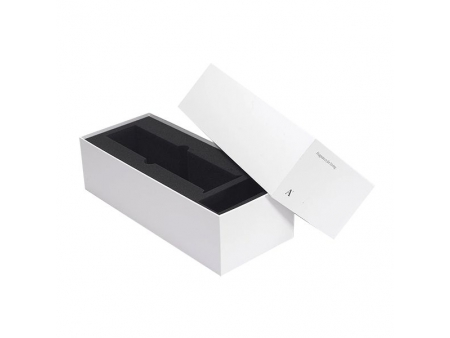

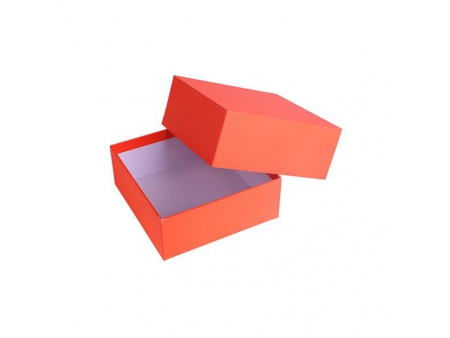

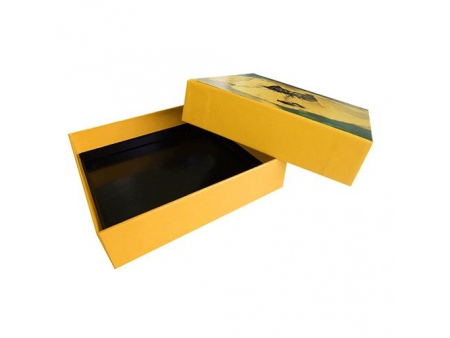

To meet the needs of small-scale box manufacturers who require quick specification changing, Lishunyuan offers a fully automated visual positioning machine that has been designed to be simple to operate. This visual positioning machine is ideal for mass-producing various types of boxes including high-end jewelry boxes, phone boxes, gift boxes, cosmetics boxes, watch boxes, and even some irregularly shaped boxes. With its advanced capabilities, this box positioning machine can meet the demands of today’s modern packaging industry and is sure to provide an efficient solution for box-making on a larger scale.
Features
- The visual positioning machine is innovatively designed to be more visually appealing and easier to use.
- Equipped with servo control and image positioning from renowned suppliers, the positioning machine can seamlessly and quickly perform high precision tasks such as feeding, gluing, positioning, without any human intervention.
- The positioning for the corner pasting is equipped with an image positioning system and robotic arm to improve precision and efficiency, with the error range of ±0.05mm, as well as faster positioning and debugging speeds.
- The visual positioning machine can be functional with only one operator with the manufacturing speed of 1500-2100 pieces per hour.
| Product Model | LY-600CCD | |
| Paper Size | W (min) | 95 mm |
| W (max) | 600 mm | |
| L (min) | 180 mm | |
| L (max) | 880 mm | |
| Paper Thickness | 80-300 g/m2 | |
| Positioning Size | L (min) | 70 mm |
| L (max) | 400 mm | |
| W (min) | 60 mm | |
| W (max) | 350 mm | |
| H (min) | 15 mm | |
| H (max) | 120 mm | |
| Positioning Accuracy | ±0.05 mm | |
| Manufacturing Speed | 25-35 sheets/min | |
| Maximum Power | 12 kW | |
| Overall Size (L*W*H) | 4700 mm*1550 mm*2000 mm | |
| Weight | 2000 kg | |
- Automatic positioning of papers, cardboards and box blanks
- All computer-based settings
- Troubleshooting
- Automatic feeding of papers and cardboards
- 24-hour control for pre-heating glue
- Full servo control system
- Image positioning system and robotic picking & placing
- Automatic system of adhesive viscosity control (optional)
- Curved belt conveyor (optional)
-

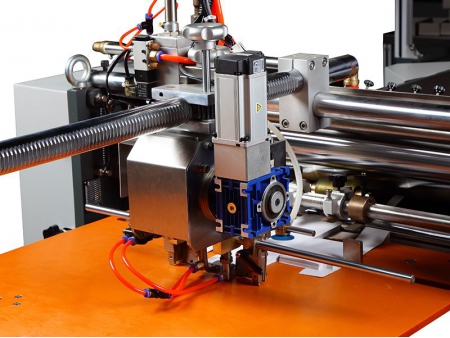

- Full servo controlled dual feeders ensure feeding stability.
- Front-suctioning and rear-blowing feeders avoid double-sheet feeding.
-

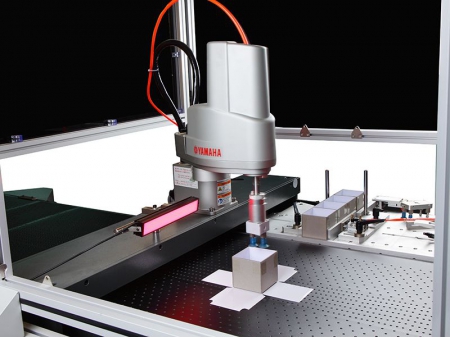

- Dual Germany-made industrial cameras with the resolution of 5 million pixels plus YAMAHA-made robotic arm allow the positioning accuracy reaching ±0.05 mm.
-
- One-body adhesive channel makes it easy to clean.
