Two Color Striped Blown Film Machine
Request a Quote
Video

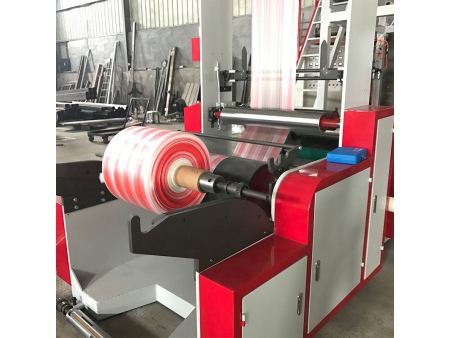

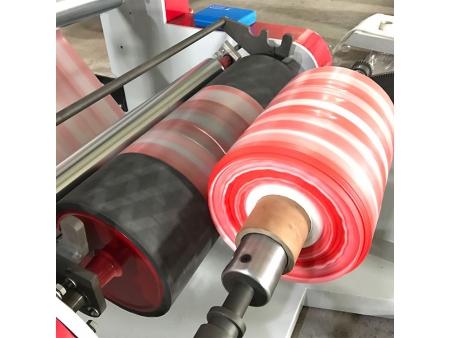

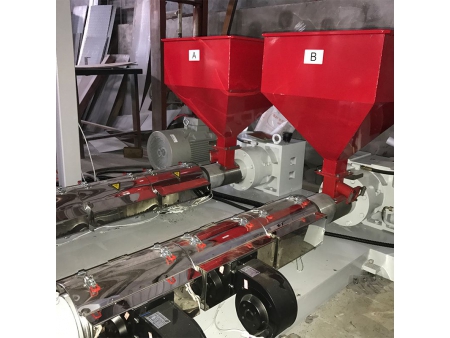

This two color striped blown film machine is particularly useful for making shopping bags, plastic packing bags, and table covers. It is capable of mixing different color stripe in the film product by simply changing the masterbatch, with two screws adjusting the mixing rate of the different materials.
Constructed out of 38 CrMoALA, the screw and barrel has undergone a 3-day nitriding process, affording it an unparalleled level of hardness.
Technical Parameters
| Model | RG-FB650-2C | RG-FB850-2C |
| Screw diameter (mm) | Ø45×2 | Ø50×2 |
| Max. width of folded film (mm) | 100-600 | 200-800 |
| Thickness of film (mm) | 0.01-0.10 | 0.01-0.10 |
| Max. Capacity (kg/h) | 60 | 70 |
| L/D ratio | 28:1 | 28:1 |
| Power of main motor (kW) | 11*2 | 15*2 |
| Power of traction motor (kW) | 0.75 | 0.75 |
| Heating power (kW) | 13*2 | 13*2 |
| Dimensions (m) | 4.8×1.9×4 | 5.5×2.1×4.2 |
| Weight (kg) | 2500 | 2800 |
Main Components
- Screw 1. Material: 38 CrMoALA
2. Material elemental analysis:
C: 0.35～0.42 Si: 0.20～0.45 Mn: 0.30～0.60 S: ≤0.035 P: ≤0.035
Cr:1.35～1.65 Al: 0.70～1.10 Ni: ≤0.030 Cu: ≤0.030 Mo:0.15～0.25
3. Hardness of tempering: HB260-290
4. Depth of nitriding treatment: 0.4-0.7 mm
5. Hardness of surface: HV900-1050
6. Roughness of surface: 0.32 Ra
7. Linearity of screw: 0.015 mm/m - Main motor: Shanghai brand, CE standard certificated
- Gearbox: High strength hard gearbox
- Heater: Ceramic heater
- Air ring: Normal type
- Screen change: T Type
- Electric parts 1. KEQANG temperature controllers have an estimated lifetime of more than 10 years
2. CHINT contact providing best quality made in China. - Gusset part: with lifting system
- Embossing roller: comes with an embossing roller, air controlling optional
