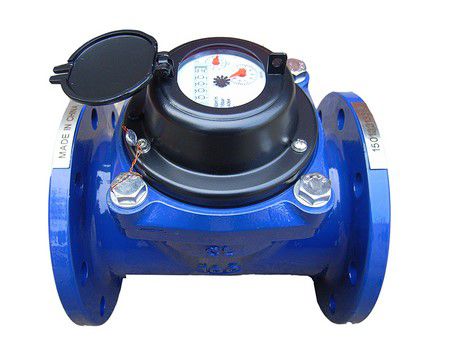

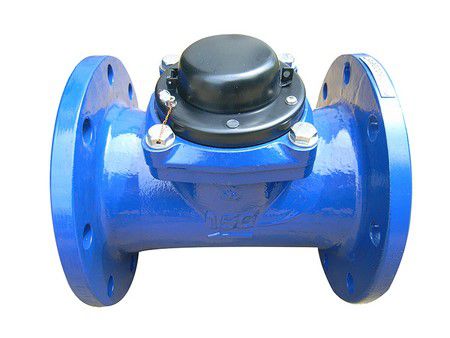

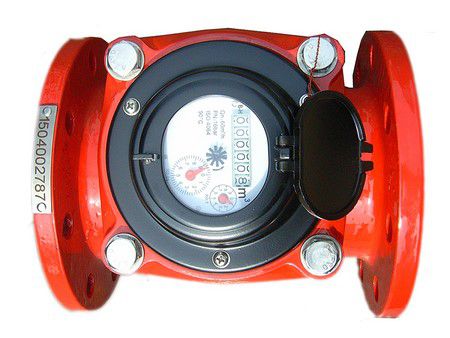

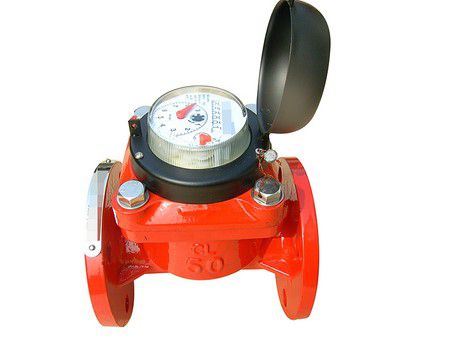

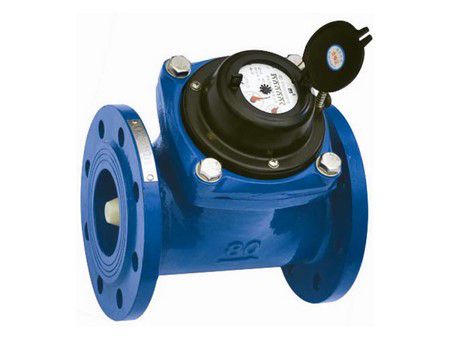

Horizontal Woltman Helix Water Meter
Request a Quote
Bulk water meter with removable measuring element
The Woltman helix water meter, designed for horizontal installation, is a leading choice in turbine water metering devices. It features a helical-shaped impeller parallel to or coinciding with the water pipeline axis. This design ensures precision and ease in water flow measurement.
Applications
With its user-friendly detachable design, Wolfman helix water meters are an excellent fit for residential water consumption analysis, commercial water use statistics, industrial flow measurement, and even in agricultural irrigation systems. Its easy maintenance feature adds to its widespread utility.
Specifications
| Nominal diameter | Q3/Q1 | Overload flowrate Q4 | Permanent flowrate Q3 | Q2/Q1 | Transitional flowrate Q2 | Minimal flowrate Q1 | Resolution of reading | Maximum reading | ||
| P type | M type | P type | M type | |||||||
| mm | m³/h | m³/h | m³/h | m³ | ||||||
| 40 | 50 | 31.3 | 25 | 1.6 | 0.8 | 0.5 | 0.0005 | 0.0002 | 999,999 | 999,999 |
| 4 | 2 | |||||||||
| 80 | 1.6 | 0.5 | 0.32 | |||||||
| 4 | 1.28 | |||||||||
| 50 | 50 | 31.3 | 25 | 1.6 | 0.8 | 0.5 | ||||
| 4 | 2 | |||||||||
| 80 | 1.6 | 0.5 | 0.32 | |||||||
| 4 | 1.28 | |||||||||
| 65 | 50 | 50 | 40 | 1.6 | 1.28 | 0.8 | ||||
| 4 | 3.2 | |||||||||
| 80 | 1.6 | 0.8 | 0.5 | |||||||
| 4 | 2 | |||||||||
| 80 | 50 | 78.75 | 63 | 1.6 | 2 | 1.26 | 0.002 | 0.002 | 9,999,999 | |
| 4 | 5.04 | |||||||||
| 80 | 1.6 | 1.3 | 0.79 | |||||||
| 4 | 3.2 | |||||||||
| 100 | 50 | 125 | 100 | 1.6 | 3.2 | 2 | ||||
| 4 | 8 | |||||||||
| 80 | 1.6 | 2 | 1.25 | |||||||
| 4 | 5 | |||||||||
| 125 | 50 | 200 | 160 | 1.6 | 5.12 | 3.2 | ||||
| 4 | 12.8 | |||||||||
| 80 | 1.6 | 3.2 | 2 | |||||||
| 4 | 8 | |||||||||
| 150 | 50 | 312.5 | 250 | 1.6 | 8 | 5 | ||||
| 4 | 20 | |||||||||
| 80 | 1.6 | 5 | 3.1 | |||||||
| 4 | 12.4 | |||||||||
| 200 | 50 | 500 | 400 | 1.6 | 12.8 | 8 | ||||
| 4 | 32 | |||||||||
| 80 | 1.6 | 8 | 5 | |||||||
| 4 | 20 | |||||||||
| 250 | 25 | 787.5 | 630 | 1.6 | 40.32 | 25.2 | 0.02 | 0.02 | 9,999,999 | 9,999,999 |
| 4 | 100.18 | |||||||||
| 50 | 1.6 | 20.16 | 12.6 | |||||||
| 4 | 50.4 | |||||||||
| 300 | 25 | 1250 | 1000 | 1.6 | 64 | 40 | ||||
| 4 | 160 | |||||||||
| 50 | 1.6 | 32 | 20 | |||||||
| 4 | 80 | |||||||||

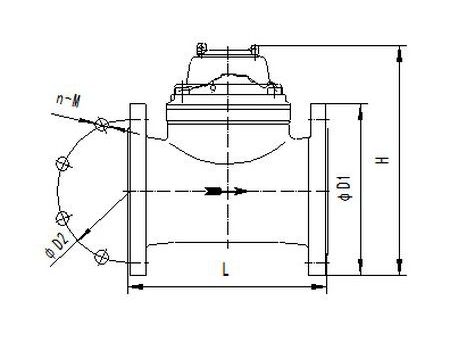

Dimensions
| Model | Length L | Height H | External diameter of flange D1 | Bolt circle diameter D2 | Connection bolt n-M |
| mm | m | m | |||
| LXLC-40 | 200 | 208 | 150 | 110 | 4-M16 |
| LXLC-50 | 200 | 215 | 165 | 125 | 4-M16 |
| LXLC-65 | 200 | 215 | 185 | 145 | 4-M16 |
| LXLC-80 | 225 | 279 | 200 | 160 | 8-M16 |
| LXLC-100 | 250 | 289 | 220 | 180 | 8-M16 |
| LXLC-125 | 250 | 299 | 250 | 210 | 8-M16 |
| LXLC-150 | 300 | 319 | 285 | 240 | 8-M20 |
| LXLC-150D | 360 | ||||
| LXLC-200 | 350 | 346 | 340 | 295 | 8-M20 |
| LXLC-200D | 385 | 12-M20(MAP16) | |||
| LXLC-250D | 450 | 430 | 395 | 350 | 12-M20 |
| 450 | 405 | 355 | 12-M24(MAP16) | ||
| LXLC-300D | 500 | 480 | 445 | 400 | 12-M20 |
| 478 | 460 | 410 | 12-M24(MAP16) |
Working Conditions
- Efficient performance with low pressure loss.
- Suitable for cold water (up to 50°C) and hot water (up to 90°C), except for wet and liquid-sealed meter types.
- Water pressure ≤1MPa or 1.6MPa.
Features
- The indicator mechanism utilizes magnetic transmission to safeguard against magnetic interference.
- Features a dry dial with vacuum sealing, ensuring fog-free and clear readings over time.
- Removable structure simplifies maintenance and repair without needing to detach the meter housing from the pipeline.
- Built with selected high quality materials for consistent and reliable operation.
- Customization available with an optional remote pulse output, catering to specific user needs.
