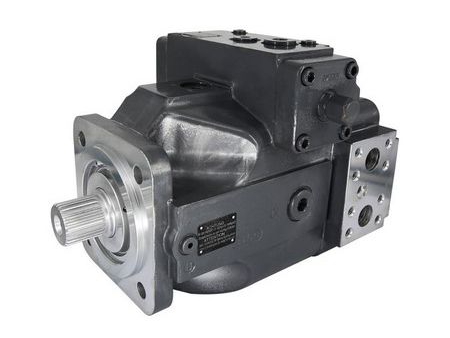

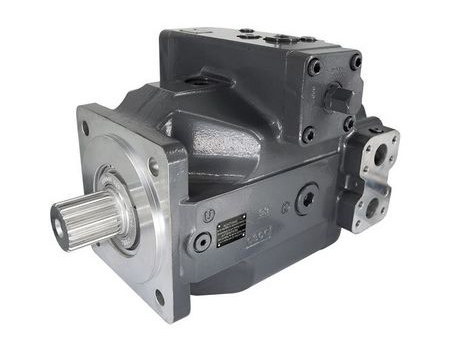

K4VSM Axial Piston Variable Motor, K4VSM

Request a Quote

View All: http://hydraulicpump-motor.com/2-2-4-axial-piston-variable-motor.html

For open or closed circuits
Sizes 40-500
Maximum nominal pressure 350 bar
Maximum peak pressure 420 bar

K4VSM series axial piston variable motor is specially designed for high-pressure engineering machinery. The engine is an oblique axial piston pump with a spherical valve, large runner and shaft drive. The product is suitable for open and closed-circuit hydrostatic drive.

Features

Through shaft variable displacement piston motor, high rigidity casing and integral swash plate, specially designed for hydrostatic drive in open and closed circuits
Flow proportional to speed, suitable for variable speed drive
Proportional speed regulation motor, electronically controlled to adjust the cradle which can steplessly change the output speed
100% torque transmission through the shaft for mounting additional pumps
High power/weight ratio
Steplessly variable spherical flow, displacement from 50% Vmax to Vmax
Swashplate angle indicator, observe the working state of the pump directly
Suitable for drives that need high reliability, high pressure, long service life and wide speed range

Technical Parameters

Size			40	71	125	180	250	355	500
Displacement	V_g	cm	40	71	125	180	250	355	500
Max. rotating speed	n_{max cont.}	rpm	3700	3200	2600	2400	2200	2000	1800
	n_{max cont.1}	rpm	4000	4000	-	-	-	-	-
Max. flow at n_max	qV_max	L/min	148	227	325	432	550	710	900
Torque constant	TK	Nm/bar	0.64	1.13	1.99	2.86	3.97	5.63	7.95
Torque at Δp = 350 bar			223	395	696	1002	1391	1976	2783
Fluid volume		L	0.4	2	3	5	7	9	11
Moment of inertia	J	kgm²	0.0043	0.0121	0.0300	0.0500	0.0959	0.1500	0.3325
Starting torque at n = 0 rpm and Δp = 350 bar		Nm(approx)	-	-	320	460	564	800	1127
Weight	m	Kg	42	60	107	112	220	235	335

Applications

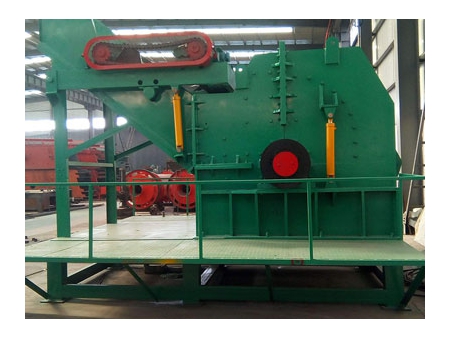

Metal Crusher

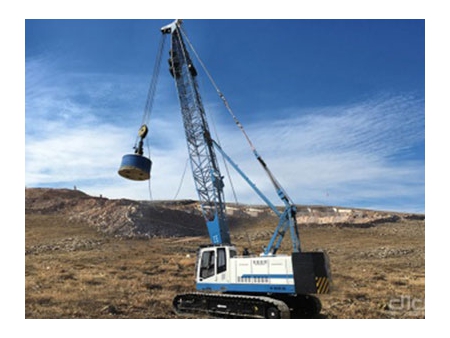

Dynamic Compaction Machine
