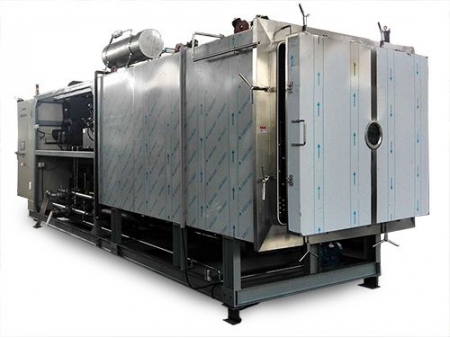

Integrated Vacuum Freeze Dryer / Lyophilizer
SFD-I Series

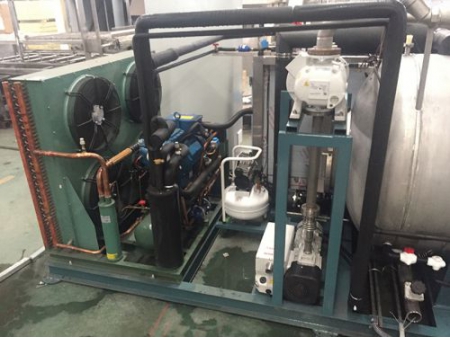

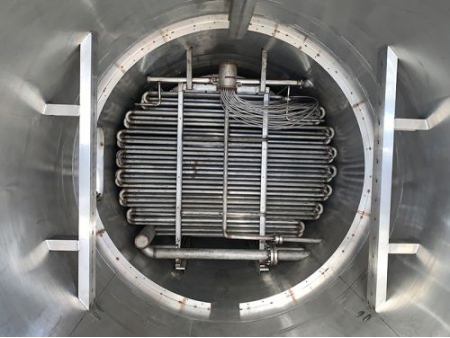

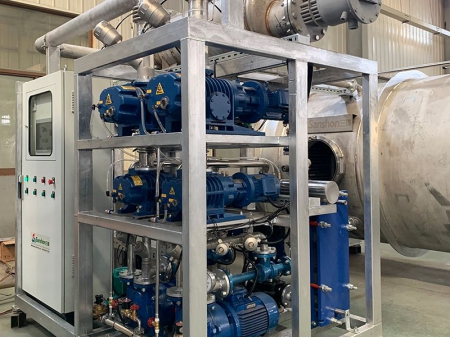

Integrated vacuum freeze dryer series features a compact design without the need for an external freezing tank, saving space. A freeze drying equipment includes a drying chamber, vacuum system, silicone oil system, refrigeration system, cold trap system, ice melting system, material transport system, automatic control system, and remote monitoring system.
With the ability to perform freeze-drying in a single chamber, integrated freeze dryers save labor and reduce floor space, making them suitable for small-scale production in enterprises.
This integrated lyophilizer can handle a wide range of products such as fruits, vegetables, meats, seafood, as well as herbal medicines, face masks, and other products. It is a preferred choice for customers with limited space and budget.
| Model | ||||
| Drying chamber shape | square/round | square/round | square/round | square/round |
| Drying area | 2m² | 5m² | 20m² | 30m² |
| Condenser capacity (batch) | ≥26kg | ≥65kg | ≥300kg | ≥450kg |
| Tray size | 650×550×30mm (final design depends on heating plate size, ensuring freeze drying area) | |||
| Number of trays | 6 pcs | 14 pcs | 56 pcs | 84 pcs |
| Tray material | SUS/AL alloy | SUS/AL alloy | SUS/AL alloy | SUS/AL alloy |
| Dimensions (L×W×H) | 2400×1200×2400mm | 3800×1600×2200mm | 5300×1600×2650mm | 7400×1600×2700mm |
| Vacuum | 1-200 pa | |||
| Heating plate temperature | -60℃～ 90℃ | |||

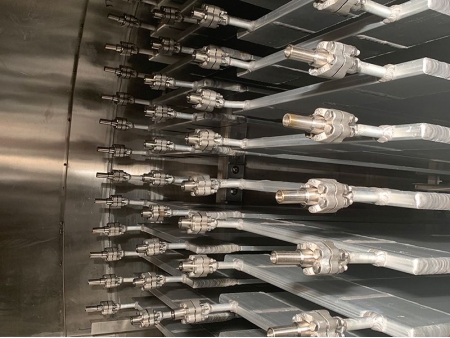

| Heating plate material | SUS304/6063 AL alloy | |||
| Number of heating plates | 6 1pcs | 7 1 pcs | 14 1 pcs | 14 1 pcs |
| Heating medium | Thermal conduction oil | |||
| Power | 10.5 kW | 17 kW | 48 kW | 76 kW |
| Machine weight | 1300 kg | 4500 kg | 7500 kg | 9500 kg |
