Request a Quote

Our tablet counters are great for counting and filling of tablets, capsules, pills, gelcaps, softgels and such solid dosage products used in pharmaceutical, nutraceutical, pesticide, chemical and other industries. These tablet counting machines can be used independently or applied together with other equipment to form a complete tablet bottling line.

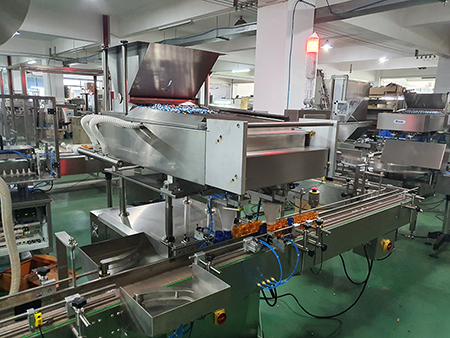

The electronic tablet counter mainly comprises of machine body, vibratory feed system, photoelectric sensor counting unit, pneumatic cylinder & solenoid valve system, control panel, conveyor belt and photoelectric sensor detecting system. The high speed counting process is completely PLC controlled, ensuring high counting accuracy.

The parts of tablet counter such as bulk hopper, material delivery board and counting channels can be easily dismantled without the use of tools for faster clean up.

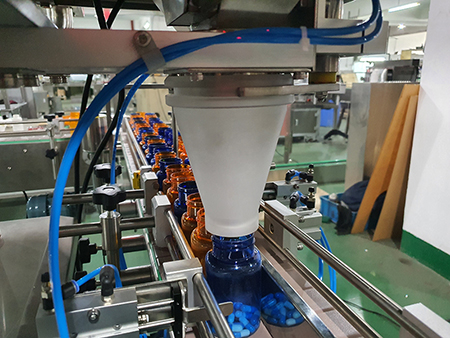

The photoelectric sensor is outfitted in detecting system to sense and count the tablets, it leads to an accurate counting result. The filling height can be adjusted adapting to different heights of containers by only pressing the lifting button on control panel, offering an easy and quick operation.

Technical Specifications
Model SL12 SL16 SL24 SL32
Number of counting channels 12 16 24 32
Output (tablet/hour) 50000-260000 60000-350000 80000-500000 100000-600000
Counting range 15-9999 tablets
Bottle diameter Φ25-Φ75mm
Bottle height 《240mm
Hopper capacity 40L 40L*2
Power supply 3P 380V 60HZ
Total power 2.2KW 2.5KW 4.0KW 4.5KW
Dimension (L*W*H) (mm) 1200*1950*1800 1300*19500*1800 1600*1950*1800 4000*2250*1850
