Changcheng provides a wide range of carton sealing machines, including fully automatic carton sealers, pneumatic carton sealers and automatic flap folding carton sealer, to maximize packaging performance. They can be used separately or in packaging lines along with conveyors, carton erector machines, labelling machines and strapping machines. The sealing tapes used in carton sealing machines are typically Kraft tapes and BOPP films.

Automatic Carton Sealer, MH-FJ-1A

Power supply	AC220V 50Hz 0.6kW
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48-72
Carton size (mm)	L150-∞, W120-480, H120-480
Speed (m/min)	20
Table height (mm)	550-750 (foot cup) 650-850 (castor wheel)
Dimension (mm)	1090x890xH (table height plus 750)

Automatic Carton Sealer, MH-FJ-1AW

Power supply	AC220V 50Hz 0.4kW
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48-72
Carton size (mm)	L150-∞, W120-480, H120-480
Speed (m/min)	20
Table height (mm)	550-750 (foot cup) 650-850 (castor wheel)
Dimension (mm)	1090x890xH(table height plus 750)

Automatic Carton Sealer, MH-FJ-1AE

Power supply	AC380V 50Hz 0.6kW
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48-72
Carton size (mm)	L150-∞, W120-480, H120-480
Speed (m/min)	20
Table height (mm)	550-750 (Foot cup) 650-850 (castor wheel)
Dimension (mm)	1090x890xH (table height plus 750)

Automatic Carton Sealer, MH-FJ-1AWE

Power supply	AC 220V 50Hz 0.4kW
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48
Carton size (mm)	L180-∞mm, W95-300mm, H70-480mm
Speed (m/min)	20m/min
Table height (mm)	550-750mm (foot cup) 630-820mm (castor wheel)
Dimension (mm)	L1,090mm×W693mm×H (table height plus 750mm)

Automatic Carton Sealer, MH-FJ-1AWS

Power supply	AC220V 50Hz 0.4kW
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48
Carton size (mm)	L180-∞, W95-300, H70-480
Speed (m/min)	20m/min
Table height (mm)	550-750 (foot cup) 630-820 (castor wheel)
Dimension (mm)	1090x693xH (table height plus 750)

Automatic Carton Sealer with Flap Folding, MH-FJ-3A

Power supply	AC220V 50Hz 0.4kW
Air pressure (MPa)	0.4-0.6
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48
Carton size (mm)	L180-∞, W95-300, H70-480
Speed (m/min)	20m/min
Table height (mm)	550-750 (foot cup) 630-820 (castor wheel)
Dimension (mm)	1090x693xH (table height plus 750)

Pneumatic Carton Sealer, MH-FJ-2

Power supply	AC220V 50Hz 0.6kW
Air pressure (MPa)	0.4-0.6
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48-72
Carton size (mm)	L150-∞, W120-470, H120-450
Speed (m/min)	20
Table height (mm)	550-750mm (foot cup) 630-820mm (castor wheel)
Dimension (mm)	1154x890xH (table height plus 840)

Automatic Carton Sealer with Flap Folding, MH-FJ-3AE

Power supply	AC220V 50Hz 0.6kW
Air pressure (MPa)	0.4-0.6
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48-72
Carton size (mm)	L200-550, W150-480, H120-480
Speed (m/min)	20
Table height (mm)	550-750 (foot cup) 650-800 (castor wheel)
Dimension (mm)	1650x890xH (table height plus 890)

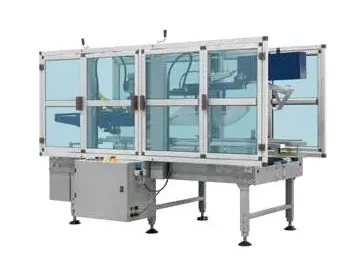

Automatic Carton Sealer with Safety Guard, MH-FJ-3AR

Power supply	AC380V 50Hz 0.6kW
Air pressure (MPa)	0.4-0.6
Sealing tape	Kraft paper tape, BOPP tape or hot melt adhesive
Tape width (mm)	48-72
Carton size (mm)	L200-500, W150-480, H120-480
Speed (m/min)	≤45
Table height (mm)	550-750 (foot cup) 650-800 (castor wheel)
Dimension (mm)	2100x900xH (table height plus 1000)

Automatic Flap Folding Carton Sealing Machine, MH-FJ-3B

Power supply	AC380V 50Hz 1.2kW
Air pressure (MPa)	0.5-0.6
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48-72
Carton size (mm)	L250-500, W200-450, H150-450
Speed (m/min)	27
Table height (mm)	550-750 (foot cup)
Dimension (mm)	2200x1100xH (table height plus 1400)

Automatic Carton Sealer, MH-FJ-3D

Power supply	AC380V 50Hz 1.37kW
Air pressure (MPa)	0.4-0.6
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48-72
Carton size (mm)	L300-1400, W180-480, H160-480 (customized)
Speed (m/min)	22
Table height (mm)	550-750 (foot cup) 630-820 (castor wheel)
Dimension (mm)	2500x990xH (table height plus 1100)

Automatic Carton Edge and Corner Sealer, MH-FJ-P1(ZP1)

Power supply	AC220V 50Hz 1.0kW
Air pressure (MPa)	0.4-0.6
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48-72
Carton size (mm)	L340-670, W200-480, H200-500
Speed (m/min)	20
Table height (mm)	600-750 (customized)
Dimension (mm)	2200x1240xH (table height plus 800)

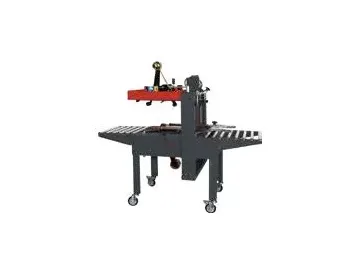

Mini Carton Sealer, MA

Power supply	AC220V 50Hz 0.4kW
Sealing tape	Kraft paper tape, BOPP tape
Tape width (mm)	48-60
Carton size (mm)	L150-∞, W120-490, H120-490
Speed (m/min)	22
Table height (mm)	600-700 (foot cup) 720-750 (castor wheel)
Dimension (mm)	800x920xH (based on carton height) H (According to sealing Height)
