Your new future trend

Production time is the most important factor in maximising profit in enterprises.
Speed-Bend series is designed to enable speed and high quality production capability in order to decrease time per unit costs.

Impressive bending solutions

Equipment/options can be tailored to individual request. Thus, the best productivity for each client is achieved while bending.

Extreme production with high performance in less time
  • Free-fall, bending and return speeds of Speed-Bend CNC press brakes series makes is the best choice to meet demands in today's competitive markets.
  • Speed-Bend series CNC press brake offer twice as fast production capacity compared to conventional CNC press brakes.
  • While increasing the speed, engineers of ACCURL R&D did not forget to increase the stroke and opening (daylight) for an ever more versatile press brake.
  • With these specs, deep bends can be achieved with longer tools, parts can be easily taken out from front of the machine.
  • Z-type parts can be bent with long dies.
    "High-speed free fall"
    "High pressing speed"
    "High returning speed"
Servo motorized back gauge X R Z1 Z2 (standard)
  • CNC backgauge designed by ACCURL is fast and accurate. The strong construction ensures an efficient operation for many years.
  • The system moves with servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01.
  • The backgauge of CNC press brake can be upgraded with X1, X2, Z1, Z2, R1 and R2 on your request.
Shift to Speed-Bend If you are looking for speed, versatility and high efficiency, Speed-Bend press brakes are the right choice
  • High quality and repetitive bending is obtained by using synchronized cylinders and valves.
  • Automatic axis referencing and calibrating when machine is turned on.
  • All ACCURL metal fabrication equipment are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.
  • Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm.
  • Well-known top and bottom tool brands are long lasting stiffened and provide precise bending.
  • Silent high pressure pump.

The best bending results You can bend longer and deeper parts with standard Speed-Bend Series.

Standard Equipment
  • Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
  • 6 axes (Y1, Y2, X, R, Z1, Z2)
  • Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics.
  • HOERBIGER servo hydraulic system.
  • CNC controlled motorized anti-deflection system.
  • Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).
  • Easy to clamp tool holding system with upper and lower tools.
  • Standard graphic controllers can be selected from: DelemDA66T 3D colour graphical touch screen controller, Cybelec Mod Eva 12 S
  • Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.
  • Ergonomic user friendly, pendant control panel.
  • Back light safety guards (category-4)
  • Front side covers with safety switches.
  • Synchronization of Y1 Y2 axis provided by linear encoders with 0,01 mm tolerances.
  • This metal forming machine uses foot pedal, is suitable to CE regulation.
  • Sliding front support arms with T slot and mm/inch rulers.
  • Throat depth 410 mm.

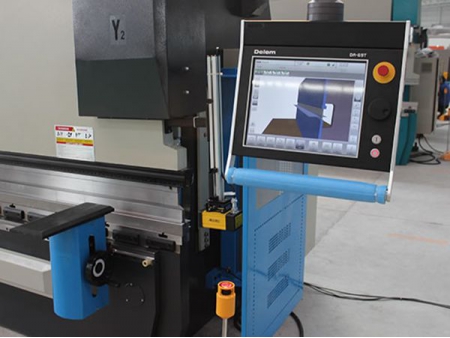

Delem DA66T CNC Control system
  • 2D graphical touch screen programming mode.
  • 3D visualisation in simulation and production.
  • 17" high resolution colour TFT.
  • Windows applications compatible.
  • Delem Modusys compatibility. (module scalability and adaptivity)
  • USB, peripheral interfacing.
  • Open system architecture.
  • User specific application support within the controllers multitasking environment.
  • Sensor bending & correction interface.
Specifications
Model(SC/MB8)
63×1500
63×2500
100×3200
100×4200
160×3200
160×4200
250×3200
Bending Capacity kN 630 630 1000 1000 1600 1600 2500
Max. Bending Length mm 1500 2500 3200 4200 3200 4200 3200
Between Columns mm 1100 2060 2700 3700 2700 3700 2700
Max. Shut Height mm 430 430 480 480 480 480 480
Slide Stroke mm 200 200 200 200 200 200 200
Throat Depth mm 370 370 400 400 400 400 400
Bolster Width mm 150 150 200 200 200 200 200
Down Speed mm/min 100 100 130 130 130 130 110
Pressing Speed mm/min 8 8 10 10 10 10 10
Return Speed mm/min 100 100 125 125 125 125 110
Back Gauge Stroke mm 500 500 500 500 500 500 500
Outline Size L mm 1825 2825 3500 4500 3500 4500 3500
W mm 1650 1650 1650 1650 1650 1650 1730
H mm 2600 2430 2540 2540 2580 2580 2580
Weight kg 4600 5600 8000 9500 10000 12000 15000
Model(SC/MB8)
250×4200
300×3000
300×4000
300×6000
400×4000
400×5000
400×6000
Bending Capacity kN 2500 3000 3000 3000 4000 4000 4000
Max. Bending Length mm 4200 3000 4000 6000 4000 5000 6000
Between Columns mm 3700 2500 3150 5050 3150 4050 5050
Max. Shut Height mm 480 480 480 480 480 480 480
Slide Stroke mm 200 200 200 200 320 320 320
Throat Depth mm 400 400 400 400 400 400 400
Bolster Width mm 200 250 250 250 250 250 250
Down Speed mm/min 110 80 80 80 80 80 80
Pressing Speed mm/min 10 8 8 8 8 8 8
Return Speed mm/min 110 85 85 85 80 80 80
Back Gauge Stroke mm 500 500 500 500 500 500 500
Outline Size L mm 4500 3300 4300 6400 4300 5300 6400
W mm 1730 1950 1950 2000 2100 2100 2100
H mm 2580 2670 2670 2950 3100 3100 3170
Weight kg 17000 20000 22000 30000 27000 32000 38000

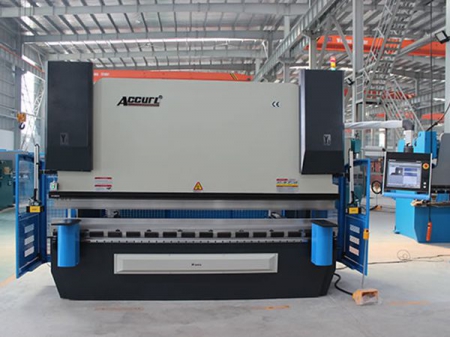

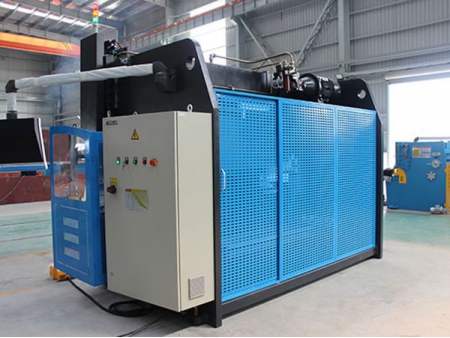

Detailed Pictures
