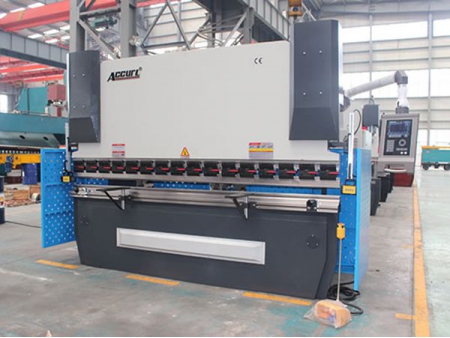

ACCURL-Bend - 3 Axes CNC Press Brake

ACCURL-Bend - 3 Axes CNC Press Brake
ACCURL-Bend - 3 Axes CNC Press Brake
ACCURL-Bend - 3 Axes CNC Press Brake
ACCURL-Bend - 3 Axes CNC Press Brake
ACCURL-Bend - 3 Axes CNC Press Brake
Request a Quote
Stronger, faster and Deeper Bends
  • ACCURL-Bend Series 3 axes CNC press machines redesigned based on users preferences to become a unique machine with its individual electronic and mechanical features.
  • Power-Bend Pro Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level with its user friendly CNC controller and low cost hydraulic maintenance.
  • New ACCURL-Bend Pro is exactly what you need for your production where complicated, sensitive, single or multiple bends on high speed are paramount.
Combination of speed and Power
  • High quality and repetitive bending is obtained by using synchronized cylinders and valves.
  • Automatic utilisation of all axes on startup.
  • All ACCURL metal bending machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest technology
  • Rigid upper beam runs on 8-point bearings with bending precision of 0,01 mm.
  • Well-known top and bottom tool brands are long lasting hardened and provide precise bending.
  • Silent high pressure pump.
    High Free Fall Speed
    High Bending Speed
    High Returning Speed
Features
  • Chrome coated cylinders are machined with 0,001 mm precision and pistons are specially hardened.
  • Original clamps are user friendly and machined with high precision.
  • Front support arms are slideable along machine length and easy to adjust.
  • Compact and well-known brand Bosch-Rexroth hydraulics are produced according to CE standards.
  • CNC press brake adopt wwo photocells on sides for rear guard.
  • Fast tool tightening.
  • Optic linear scales are sensitive up to ± 0,01 mm.
  • Synchronized working cylinders will give you the best bending result with its perfect repeatability ratio.
  • 2 axis ultra strong backgauge system (X=800 mm and R), with ± 0,01 mm. repeatability, moves along rails and ball screw, bending length controlled by CNC controller, foldable back gauge fingers for reverse bending applications.
  • Multifunctional and highly programmable, DELEM DA52S CNC controller.
  • The metalworking machinery uses SIEMENS electrical system.
  • Automatic axis referencing when machine is turned on.
  • Side guard is standard meeting CE regulations.
Your best bending solution
  • This CNC hydraulic press brake has perfect configuration for sensitive bending and economic solutions.
  • Precise results for long and deep bends.
  • Continuous sensitivity with crowning system.
  • Long lasting rigid body is also suitable for heavy duty applications.
  • Easy maintenance.
    You can bend longer and deeper parts with maximum repeatability with standard ACCURL-Bend machines.
Standard Equipment
  • Height adjustable and movable sliding front support arms.
  • Top and bottom tools are surface hardened by special treatment.

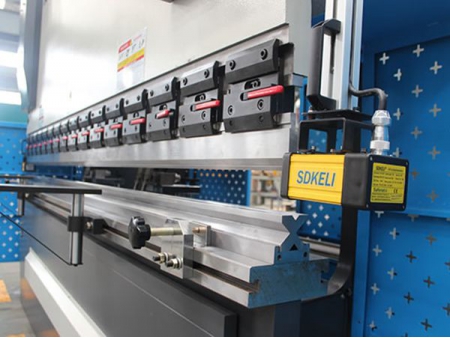

  • Promecam easy clamping system.
  • Delem DA52s CNC controller.
  • CNC controlled strong X=800 mm back gauge
  • 410 mm throat depth.
  • 2 back gauge fingers
  • Scales in metric and inches.
  • Crowning system in bottom beam 2500/.../4100 hydraulic crowning and from 600 tn and above motorized crowning is standard.
  • Foot pedal is produced according to CE standards and suitable for single and multiple bends.
  • 2 photocells are placed facing each other for rear guards.
  • Covers for cylinders and top beam
  • Preadjusted electrical requirements based on customer's geographical area.

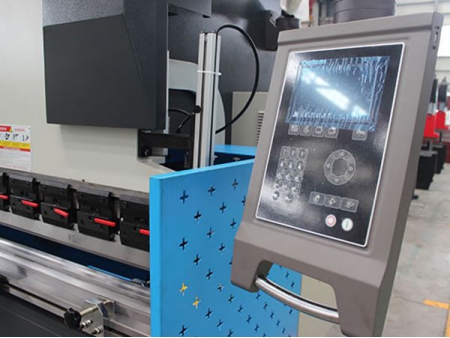

Delem DA52s CNC Control system
  • Numerical, one page programming
  • Quick, one-page programming
  • Hotkey navigation
  • 6,4" VGA colour LCD (TFT)
  • Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
  • Crowning control
  • Tool/material/product library
  • USB, memory stick interfacing
  • Servo, frequency inverter and AC control for backgauge axes.
  • Advanced Y-axis control algorithms for closed loop as well as open loop valves
Specifications

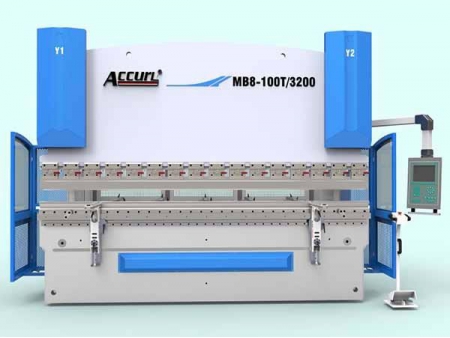

Model (SC-MB8)
63T×1500
63T×2500
100T×3200
100T×4200
160T×3200
160T×4200
250T×3200
Capacity kN 630 630 1000 1000 1600 1600 2500
Max. Bending
Length
mm 1500 2500 3200 4200 3200 4200 3200
Between
Columns
mm 1100 2060 2700 3700 2700 3700 2700
Max. Shut
Height
mm 430 430 480 480 480 480 480
Slide Stroke mm 200 200 200 200 200 200 200
Throat Depth mm 370 370 400 400 400 400 400
Bolster Width mm 150 150 200 200 200 200 200
Down Speed mm/min 100 100 130 130 130 130 110
Pressing Speed mm/min 8 8 10 10 10 10 10
Return Speed mm/min 100 100 125 125 125 125 110
Back Gauge
Stroke
mm 500 500 500 500 500 500 500
Outline
Size
L mm 1825 2825 3500 4500 3500 4500 3500
W mm 1650 1650 1650 1650 1650 1650 1730
H mm 2600 2430 2540 2540 2580 2580 2580
Weight kg 4600 5600 8000 9500 10000 12000 15000
Model(SC-MB8)
250T×4200
300T×3000
300T×4000
300T×6000
400T×4000
400T×5000
400T×6000
Capacity kN 2500 3000 3000 3000 4000 4000 4000
Max.
Bending
Length
mm 4200 3000 4000 6000 4000 5000 6000
Between
Columns
mm 3700 2500 3150 5050 3150 4050 5050
Max. Shut
Height
mm 480 480 480 480 480 480 480
Slide Stroke mm 200 200 200 200 320 320 320
Throat
Depth
mm 400 400 400 400 400 400 400
Bolster
Width
mm 200 250 250 250 250 250 250
Down
Speed
mm/min 110 80 80 80 80 80 80
Pressing
Speed
mm/min 10 8 8 8 8 8 8
Return
Speed
mm/min 110 85 85 85 80 80 80
Back Gauge
Stroke
mm 500 500 500 500 500 500 500
Outline
Size
L mm 4500 3300 4300 6400 4300 5300 6400
W mm 1730 1950 1950 2000 2100 2100 2100
H mm 2580 2670 2670 2950 3100 3100 3170
Weight kg 17000 20000 22000 30000 27000 32000 38000
