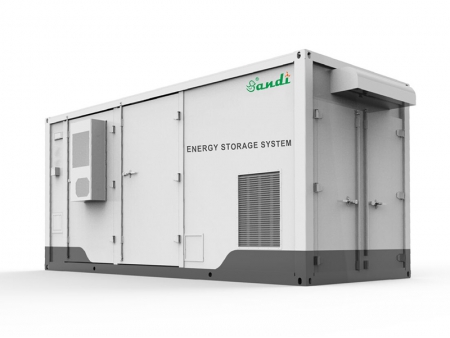

Containerized Battery Energy Storage System (BESS)
Containerized battery energy storage system integrates the battery system, battery management system (BMS), power conversion system (PCS), monitoring system, and temperature control system. This all-in-one energy storage system is highly portable and easy to install, making it suitable for environments with high altitudes, extremely cold temperatures, strong winds, and other challenging conditions. Additionally, the battery system type and capacity can be customized according to specific requirements.
Containerized battery energy storage system is mainly used in power construction projects, temporary power facilities, and areas with insufficient power supply, such as remote regions or places where renewable energy resources are being harnessed.
- The use of LiFePO4 batteries allows for rapid charging and discharging to meet the capacity requirements for KW and MW-level power output.
- Fully automatic intelligent battery management technology ensures the longevity of the batteries.
- Containerized battery energy storage system incorporates high-performance car-grade chips and control devices from NXP in the United States.
- The all-in-one solution offers a fast response speed, with a response time of less than 200ms.
- Emergency shutdown operation is equipped to ensure system safety.
- Integrated with EMS energy management system, enabling centralized management of charging and discharging processes through BMS and solar controllers, effectively controlling the charge and discharge cycles and protecting the battery cells to extend their lifespan.
| Output power | 100-1000kW (customizable) |
| Battery capacity (kWh) | 500-2000kWh (customizable) |
| Protection | IP54 |
| Working temperature | -20-55℃ |
| Altitude | 3000m |
| Dimensions (H×W×H) | 12.192×2.438×2.896m |
| Cooling system | Industrial air conditioning/fan cooling/ temperature control |
| Monitoring system | EMS/video monitoring |
| Fire protection system | yes |
| Access control system | yes |
| Lighting system | Daily use & emergency |
| Battery management system | yes |
