Home Battery Energy Storage System (BESS)
Request a Quote
Integrated battery system combining lithium-ion batteries, power inverter, solar controller and battery management system (BMS)

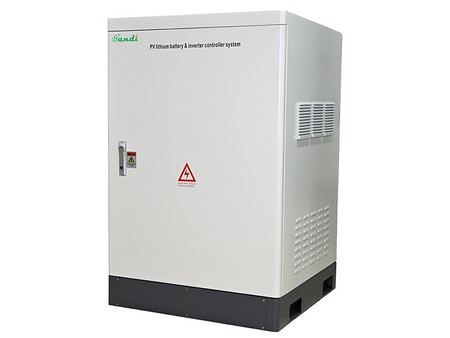

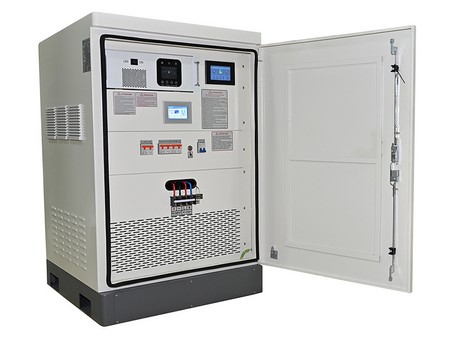

SPVLI-16kWh-INV10KW-CHR7KW home battery energy storage system integrates grid frequency inverters, solar controllers, and LiFeo4 batteries/BMS. The lithium battery capacity is 16kWh, and the inverter power is 6kW/10kW. This integrated battery system can be charged using solar energy or grid electricity.
Applications
Home battery energy storage system is mainly used to provide power for villas, residential homes, public places, rural farmers and herdsmen in remote areas, communication base stations, small factories, etc.
Features
- The BMS (Battery Management System) uses high-performance automotive-grade chips from NXP in the United States, with strong anti-interference, good reliability, and a wide temperature range.
- The battery system can integrate the solar controllers, grid chargers, charging piles, and online communication control.
- Master-slave mode and passive equalization allows for managing equalization resistors, setting equalization start voltage difference, and monitoring the equalization resistor temperature.
- The outdoor protection level reaches IP45, offering excellent waterproof and dustproof effects.
Specifications
| Model | SPVLI-16kWh-INV12kW-CHR7kW | |
| Battery Module | Battery type | LiFePO4 |
| Rated voltage | 153V | |
| Rated energy capacity | 16kWh | |
| Charge voltage | 172.8V | |
| Discharge cut-off voltage | 120V | |
| Communication | CAN | |
| AC/DC Battery Charger | Input voltage | 100~280VAC (single phase) |
| Output voltage | 100~750VDC | |
| Charge current | 1-20A | |
| Rated power | 7kW (single phase) | |
| Pure Sine Wave Inverter | Rated battery voltage | 153VDC |
| Output waveform | Pure sine wave | |
| Output power | 12kW | |
| Output voltage | 220VAC single phase 2-wire | |
| Output current | 54.5A | |
| Overload ability | 150%, 5s | |
| Protection functions | Input reverse polarity, under voltage, overvoltage, overcurrent, short circuit, overheating | |
| Enclosure | Degree of protection | IP20 (indoor)/IP45(outdoor) |
