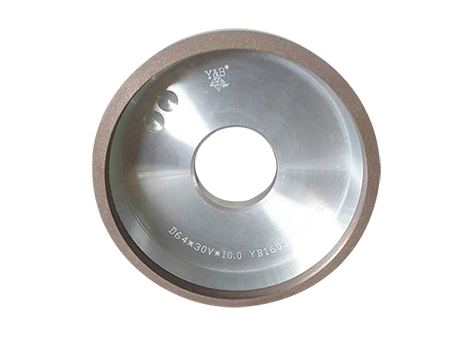

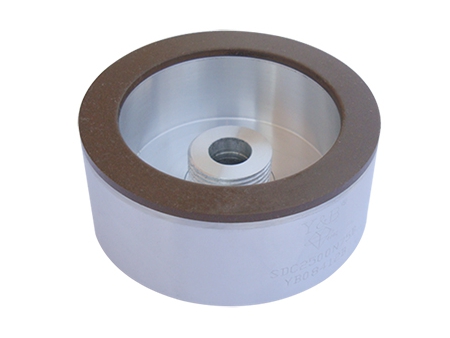

Flaring Cup Resin Bond Diamond Grinding Wheel
Request a Quote
This product has been discontinued and removed from our shelves.
The flaring cup resin bond diamond grinding wheel is used for grinding carbide tools, cermet cutters and other blade tools. The 4A2 type, 6A2type and 6V5 type are available for customers to choose from.
Features
- Excellent heat resistance
- Excellent sharpness
- High grinding efficiency
- It features a low thermal expansion, and will not easily generate heat or block the machinery, ensuring it is easy to control the machining precision.
4A2 Grinding wheel
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Abrasive width (mm) |
| 22 | 8-12 | 6 | 4 |
| 26 | 8-14 | 3 | |
| 30 | 3/5 | ||
| 35 | 8-16 | 10 | 3 |
| 40 | 5 | ||
| 45 | 6 | ||
| 50 | 12-20 | 3/4/5/6/6.5/7 | |
| 55 | 15-20 | 3 | |
| 60 | 2-20 | 5/6/8/10/12 | 3/5/6 |
| 65 | 5/6/8/10/12/13 | 5/6 | |
| 70 | 10/12/12.7/16 | 3/4/6/8 | |
| 75 | 0.2-20 | 8/10/12/12.7/16 | 2/3/4/5/5.5/6/8/10/15/18 |
| 80 | 3/4/5/6/8/12/15 | ||
| 85 | 5/6/8 | ||
| 90 | 8/10/12/12.7/16/19.05/20/22.23 | 5/7 | |
| 95 | 0.4-30 | 10/16/19.05/20/22.23/25.4 | 3/5/10 |
| 100 | 2/3/5/6/8/10/10.5/11.5/14/15/20 | ||
| 110 | 0.4-35 | 20/22.23/25.4/31.75/32 | 5 |
| 125 | 2-20 | 20/22.23/25.4/31.75/32 | 1.5/2/3/4/5/6/7/8/10/12/15/17.5/20 |
| 130 | 0.8-35 | 5 | |
| 150 | 1-35 | 25.4/31.75/32/40 | 3/4/5/6/7/8/10/13/15/20/25 |
| 175 | 3-35 | 31.75/32/40 | 3/5/6/10/13/22.5 |
| 180 | 1-40 | 31.75/32/40/50.8/75/76.2 | 3/5/6/7/8/10/15 |
| 200 | 3/5/6/7/8/10/12/15/20/30/40 | ||
| 204 | 10-50 | 31.75/32/40/50.8/75/76.2 | 5 |
| 210 | 31.75/32/40/50.8/75 | 8 | |
| 220 | 31.75/32/40/50.8/75/127 | 5 | |
| 250 | 31.75/32/40/50.8/75/127/203 | 3/5/6/10 | |
| 275 | 7 | ||
| 277 | 6/7/9.5 | ||
| 300 | 10-60 | 3/5/6/7/10 | |
| 350 | 10-90 | 3/5/6/8/10/15 | |
| 400 | 3/5/6/10 | ||
| 450 | 10-80 | 6/40 | |
| 500 | 60 | 5/6/10/15 | |
| Note: other specifications can be customized upon request! | |||
6A2 Grinding wheel
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Abrasive width (mm) | Abrasive thickness (mm) |
| 40 | 10-20 | 10 | 3/5 | 2-4 |
| 50 | 10-25 | 3/5/6/8 | 2-5 | |
| 75 | 10/19.05/20 | 3/5/6/8/10 | ||
| 100 | 15-30 | 19.05/20 | 3/5/6/8/10/12/15/20 | 3-6 |
| 125 | 15-35 | 25.4/31.75/32 | 3/5/6/8/10/12/15/20/25/30 | |
| 150 | ||||
| 175 | 15-40 | 6/8/10/12/15/20/25 | 3/4/5/6/8 | |
| 200 | 20-55 | 6/8/10/12/15/20/25/30 | ||
| 250 | 32/75 | 6/8/10/12/15/20/25/30 | ||
| 300 | 25-60 | 75/127 | 10/12/15/20/25/30 | 4/5/6/8/10 |
| 350 | 30-60 | |||
| 400 | 127/203 | 15/20/25/30/35/40 | ||
| 450 | 30-80 | 20/25/30/35/40/50 | ||
| Note: other specifications can be customized upon request! | ||||
6V5 Grinding wheel
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Abrasive width (mm) |
| 22 | 8-12 | 6 | 4 |
| 26 | 8-14 | 3 | |
| 30 | 3/5 | ||
| 35 | 8-16 | 10 | 3 |
| 40 | 5 | ||
| 45 | 6 | ||
| 50 | 12-20 | 3/4/5/6/6.5/7 | |
| 55 | 15-20 | 3 | |
| 60 | 2-20 | 5/6/8/10/12 | 3/5/6 |
| 65 | 5/6/8/10/12/13 | 5/6 | |
| 70 | 10/12/12.7/16 | 3/4/6/8 | |
| 75 | 0.2-20 | 8/10/12/12.7/16 | 2/3/4/5/5.5/6/8/10/15/18 |
| 80 | 3/4/5/6/8/12/15 | ||
| 85 | 5/6/8 | ||
| 90 | 8/10/12/12.7/16/19.05/20/22.23 | 5/7 | |
| 95 | 0.4-30 | 10/16/19.05/20/22.23/25.4 | 3/5/10 |
| 100 | 2/3/5/6/8/10/10.5/11.5/14/15/20 | ||
| 110 | 0.4-35 | 20/22.23/25.4/31.75/32 | 5 |
| 125 | 2-20 | 20/22.23/25.4/31.75/32 | 1.5/2/3/4/5/6/7/8/10/12/15/17.5/20 |
| 130 | 0.8-35 | 5 | |
| 150 | 1-35 | 25.4/31.75/32/40 | 3/4/5/6/7/8/10/13/15/20/25 |
| 175 | 3-35 | 31.75/32/40 | 3/5/6/10/13/22.5 |
| 180 | 1-40 | 31.75/32/40/50.8/75/76.2 | 3/5/6/7/8/10/15 |
| 200 | 3/5/6/7/8/10/12/15/20/30/40 | ||
| 204 | 10-50 | 31.75/32/40/50.8/75/76.2 | 5 |
| 210 | 31.75/32/40/50.8/75 | 8 | |
| 220 | 31.75/32/40/50.8/75/127 | 5 | |
| 250 | 31.75/32/40/50.8/75/127/203 | 3/5/6/10 | |
| 275 | 7 | ||
| 277 | 6/7/9.5 | ||
| 300 | 10-60 | 3/5/6/7/10 | |
| 350 | 10-90 | 3/5/6/8/10/15 | |
| 400 | 3/5/6/10 | ||
| 450 | 10-80 | 6/40 | |
| 500 | 60 | 5/6/10/15 | |
| Note: other specifications can be customized upon request! | |||
