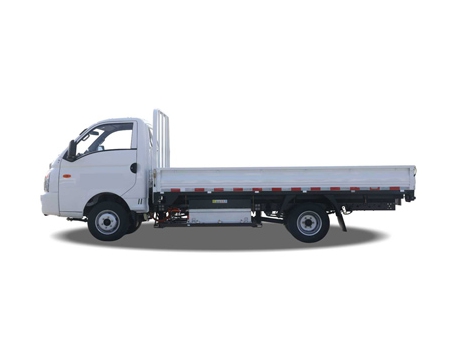

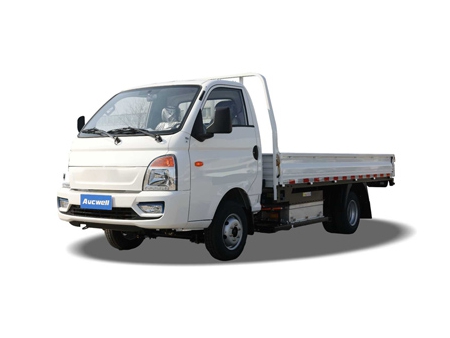

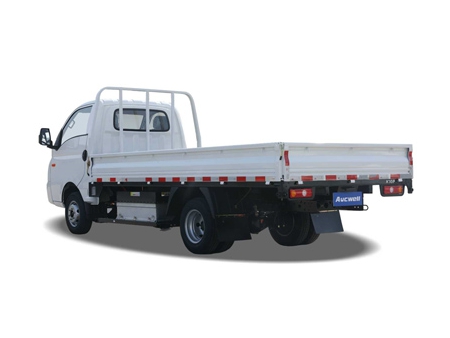

Electric Light Duty Truck
The K10P offers a blend of size and power, with dimensions of 5620*1760*2090mm, making it a versatile choice for various transportation needs. This electric flatbed truck is powered by advanced technology, including a custom-designed battery pack and motor that deliver reliable power efficiently.
Designed to perform in all weather, the electric light duty truck includes a heated battery system to ensure optimal performance, even in cold conditions. This means no interruptions to charging or driving when the temperature drops.
This electric truck stands out for its exceptional efficiency, boasting a motor that operates at an impressive 97% efficiency. Such performance ensures that every journey is not only powerful but also remarkably smooth. With a rated load of up to 1790kg, the electric truck is well-equipped to handle substantial loads, making it a robust choice for businesses in need of reliable and efficient heavy-duty transportation. Its blend of high efficiency and excellent load capacity positions the K10P as the best choice for those aiming to optimize their operations while adhering to environmentally friendly practices.
| Main Parameters | Cargo Box Type | Dropside Truck |
| Vehicle Dimensions | 5620*1760*2090 mm | |
| Cargo Box Size | 3510*1660*370 mm | |
| Wheel Base | 3100 mm | |
| Kerb Weight/Total Mass | 2150 / 4200 kg | |
| Rated Contained Mass | 2050 kg | |
| Approach/Departure Angle | 20°/ 16° | |
| Front/Rear Suspension | 1190 / 1330 mm | |
| Front/Rear Tracks | 1365 / 1235 mm | |
| Dynamic Performance | Max. Speed | 90 km/h |
| Climbing Capacity | 20 % | |
| Battery Capacity | 61.82 kw/h | |
| Driving Range | 268 km | |
| Motor Type | Permanent magnet synchronous motor | |
| Peak Power and Torque | 112 / 255（kw/N.m） | |
| Chassis Steering system | Drive Mode | Middle-engine rear-drive |
| Front Suspension | Horizontal plate spring type independent suspension | |
| Rear Suspension | Horizontal plate spring type independent suspension | |
| Steering Type | EPS Electronic power steering | |
| Wheels Brake System | Tire Details | 185R15LT 8PR |
| Wheel Material / Tire | Steel wheels / 6 | |
| Front and Rear Brake System | Front disc rear drum | |
| Brake Type | Double circuit hydraulic brake | |
| Parking Brake | Ratcheting zip type | |
| Body Structure | Body Structure | Non load-supporting |
| NO. of Doors | 2 | |
| NO. of Seats | 2 | |
| Charging Configuration | GB Fast Charger | ● |
| 6.6kW AC Slow Charger | ● |
