MT95H Rigid Dump Truck

Request a Quote

View All: http://construction-equip.com/3-3-underground-dump-truck-fk8-12t.html

Overviews

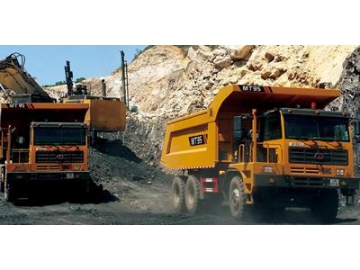

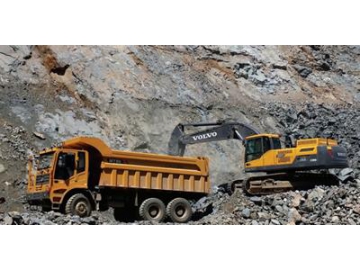

The MT95H heavy duty dump truck features a 390kw high powered engine, and is capable of carrying up to 60 tons at a top speed of 44km/h. In addition, the truck is equipped with a large tire and anti-rolling cab, which gives the truck an outstanding braking effect, ensuring driver safety. It is primarily used to transport coal, iron ore, stone and other bulk materials.

Technical Parameters

Model MT95H
Gross weight 32000kg
Max. payload (nominal payload) 60t
Engine WEICHAI WP12G460E310
Engine power 390kW
Displacement 13L
Transmission FAST 8DS260
Max. torque 2600Nm
Speed range 8 speeds forward and 2 reverse
Engine speed 2600rpm
Axles load 25T+35T+35T
Tyres 16.00-25-36PR
Max.travel speed 44km/h
Tailgate dump body capacity (heaped) 33m³
Dump body capacity (struck) 32m³
Overall dimension (length × width × height) 9080×3670×4140 mm

Features

The heavy duty truck features a load capacity of 60 tons, and uses a reinforced flexible frame. It can move even in deep pits or on complex roads, and the chassis structural frames are made of thick, high strength steel plates and large tires.
The tailgate helps save more material to withstand larger loads.
In order to accommodate the transportation and handling of heavy goods, the truck uses large tires and heavy-duty vehicle components to evenly distribute the weight. In addition, the truck is safe and comfortable with agile shock absorption.
The heavy duty dump truck anti-rolling cab, good braking effect, multi-stage shock absorption , safety and comfort.
The heavy duty dump truck features a wide structure, a large sectional frame, professional gearbox and large tonnage drive axle.
The heavy duty dump truck uses engineering machinery technology to combine the steering and lifting systems, and uses fully hydraulic steering for light operation, low failure rates and high attendance.
