Overviews

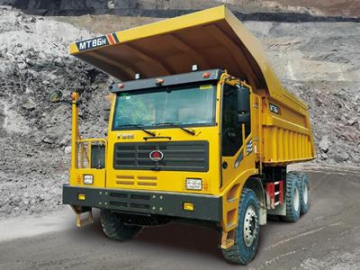

The MT86H heavy duty dump truck is one of LGMRT's main mining trucks. The truck is equipped with a 310kw high powered engine, and is capable of being loaded with up to 55 tons of bulk material, making it suitable for large mines. These dump trucks are popular in a variety of mines, from coal to jade and everything in between.

Technical Parameters

Model MT86H
Gross weight 30,000 kg
Max. payload (nominal payload) 55t
Engine WEICHAI WD12G420E211
Engine power 310kW
Displacement 12L
Transmission FAST 7DS200K
Max. torque 2000Nm
Speed range 7 speeds forward and 1 reverse
Engine speed 2600rpm
Axles load 20T+35T+35T
Tyres 14.00R25
Max.travel speed 44km/h
Tailgate dump body capacity (heaped) 31m³
Dump body capacity (struck) 30m³
Overall dimension (length × width × height) 9070×3550×3960mm

Features

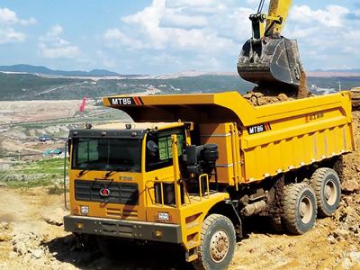

This heavy duty dump truck is primarily used in large mines, such as coal, iron and stone mines.
The truck has a reinforced metal canopy above the cab. The metal roof protects the driver from harm in the event materials fall directly onto the cab during vehicle movement.
Taking driver safety into consideration, the truck is equipped with a multi-stage damping system, and the cab's center of gravity has been reduced. These features protect the driver from harm in the event of truck rollover.
Equipped with heavy-duty large-tonnage drive axles, the truck's service life is up to 10,000 hours.
This heavy duty dump truck uses fully hydraulic steering for greater comfort than mechanical steering.
