Specification:
  • Material: Aluminum alloy
  • Rail width: 50mm
  • Optional Length: 100mm-4000mm
  • Sliding block type: 4 / 6,
  • Max load of single slider: 20KG
  • Straightness/Curvature: ≤0.15/1000mm
PDF down

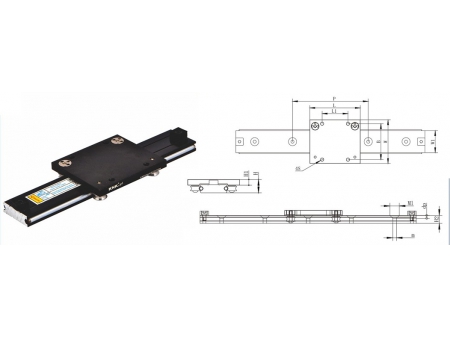

KWZ Series Set Rail dimensions Block dimensions
Model H W W1 H2 dp P D ml m W H1 L B L1 S BL(N) DT(N-m) Mb(g/pcs)
Yo Zo Mxo Myo Mzo
KWZ-10M 18 70 35 11 4 60 5 13 6 70 8 80 57 41 M6 400 400 28.02 30.9 31.2 130
KWZ-10N 18 85 50 11 4 60 5 13 6 85 8 80 72 41 M6 450 420 30.6 33.9 34.5 140
KWZ-ZB80 22 80 35 14 4 60 6 13 6 85 8 80 48 70 M6 510 450 33.5 37 38.6 160
Product Detail

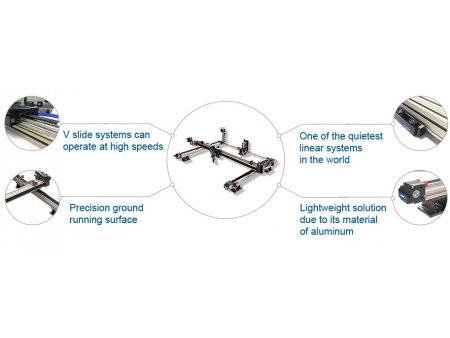

Feature

The travel length of the linear guides can be customized according to the specific requirements of customers.

The number of sliders are optional, and then you can choose them in the light of the size of the load.
