SY-31 Centrifugal Constant Acceleration Tester

SY-31 Centrifugal Constant Acceleration Tester
SY-31 Centrifugal Constant Acceleration Tester
Request a Quote

The SY-31 centrifugal constant acceleration tester is used to examine whether the components, equipment sets, and other electronic goods suffered by the force (except gravity) at constant acceleration can offer normal operation and structural load bearing capacity in expected service environments. It can evaluate the structural integrity of some components and the electrical parameters of specimens under constant acceleration.

Functions and Features
  • Specimens can be provided with liquid, gas, and electricity in test process. The status of the specimen that bears acceleration is reappeared with reality.
  • Our centrifugal constant acceleration tester is configured with a video monitoring system to supervise the test state.

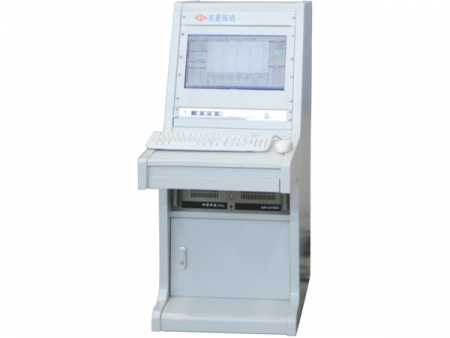

  • Its interface is remotely controlled by a fully automated computer. The testing equipment will be activated only if an operator inputs simple value. It can complete acceleration tests accurately.
  • Multi-stage acceleration consecutive tests are available on basis of different requirements of specimens.
  • This centrifugal testing machine can realize open-circuit, over-limit and over-speed protection.
  • In case of auto control failure or no auto control, the centrifugal constant acceleration tester will adopt manual control method to accomplish a test.
Technical Parameters
Model SY31-30 SY31-50 SY31-100 SY31-100A SY31-200 SY31-500 SY31-1000
Max. Load (kg)/ Position 30x2 50x2 100x2 100x2 200x2 500 1000
Acceleration (m/s2) 30-1000 30-1000 30-1000 30-1000 30 - 700 30 - 500 30-500
Specimen Size (L×W×H: mm) 200x200 x150 200x200 x150 400x400 x 300

500x500

x400

700x700 x700 1000x1000 x1000 1200x1200 x1200
Specimen-Installed Radius (mm) 1250 1350 1750 2250 2500 3000 6250
Turning Radius (mm) 1350 1500 2000 2500 3000 3500 7000
Start Time (min) ≤3 ≤3 ≤5 ≤5 ≤5 ≤5 ≤10
Stop Time (min) ≤3 ≤3 ≤5 ≤5 ≤5 ≤5 ≤10
Continuous Working Time (min) 60 60 60 60 60 30 30
Power Consumption (kVA) 37 37 37 55 90 120 500
Dimension (mm) Φ3500 Φ4000 Φ5000 Φ6000 Φ7500 Φ8500 Φ16000
Current Collector (optional) 60 ring 500V 5A
Weight (kg) 2500 2800 3000 3200 8000 13000 35000
Power Supply Three-phase 380V, 50/60Hz
Measure and Control System IPC control
Standard GJB150 GJB360 GB/T2423 MIL-STD-810F IEC68-2-7
Working Environment Temperature range 0~40°C
Humidity range ≤80% (non condensing)
Remark The specimen-installed radius, current collector, and control accuracy can be configured according to relevant standard or the requirements of users.
