Copper Connector (with barrier), GT Series
Request a Quote
This cable connector is suitable for connecting power cables, especially in heat and cold shrink joint kits.
Download
Features
The connector is made of quality T2 copper rods, with a copper content ≥99.0% and good conductivity performance (conductivity rate ≥97% IACS). The raw copper material meets the national standard of GB/T 5231-2001.

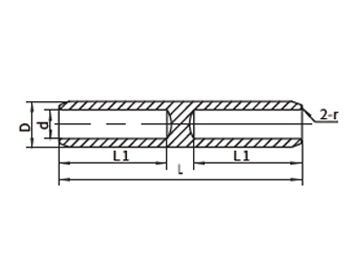

Structure Chart
Specifications
| Model | D | d | L | L1 | r |
| GT-10 | 9 | 5 | 62 | 28 | 0.7 |
| GT-16 | 10 | 6 | 65 | 30 | 0.7 |
| GT-25 | 11 | 7 | 70 | 32 | 0.7 |
| GT-35 | 12 | 8.5 | 75 | 34 | 0.7 |
| GT-50 | 14 | 9.6 | 80 | 35 | 1 |
| GT-70 | 16 | 12 | 90 | 41 | 1 |
| GT-95 | 18 | 13 | 95 | 43 | 1 |
| GT-120 | 20 | 15 | 100 | 46 | 1 |
| GT-150 | 22 | 16 | 105 | 48 | 1.2 |
| GT-185 | 25 | 18 | 110 | 50 | 1.2 |
| GT-240 | 27 | 20 | 120 | 55 | 1.5 |
| GT-300 | 30 | 23 | 130 | 60 | 1.5 |
| GT-400 | 34 | 26 | 140 | 64 | 1.8 |
| GT-500 | 38 | 29 | 155 | 70 | 1.8 |
| GT-630 | 45 | 34 | 170 | 80 | 2 |
