Copper Lug (without barrier), DT Series
Request a Quote
DT series copper lug can be used to connect the electric wire, the power cable and the electrical equipment of a power distribution. It can also be used with cold and heat shrink outdoor termination kits.
Download
Features
The lug is made of quality T2 copper rods, with a copper content ≥99.0% and good conductivity performance (conductivity rate ≥98% IACS). The raw copper material meets the national standard of GB/T 5231-2001.

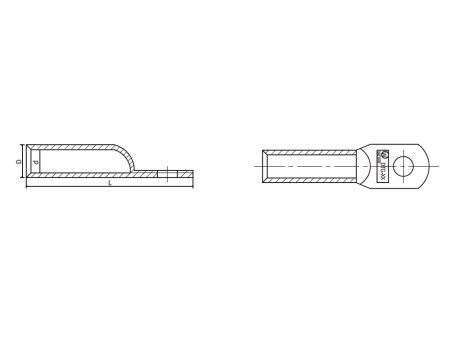

Structure Chart
Specifications
| Model | Main dimensions | ||
| Out dimension D | Inner dimension d | Length L | |
| DT-10 | 9 | 5.0 | 50 |
| DT-16 | 10 | 6.0 | 56 |
| DT-25 | 11 | 7.0 | 60 |
| DT-35 | 12 | 8.0 | 65 |
| DT-50 | 14 | 10.0 | 71 |
| DT-70 | 16 | 12.0 | 80 |
| DT-95 | 18 | 13.0 | 86 |
| DT-120 | 20 | 15.0 | 95 |
| DT-150 | 22 | 16.0 | 103 |
| DT-185 | 25 | 18.0 | 115 |
| DT-240 | 27 | 20.0 | 120 |
| DT-300 | 30 | 24.0 | 135 |
| DT-400 | 34 | 26.0 | 150 |
| DT-500 | 38 | 30.0 | 170 |
| DT-630 | 45 | 35.0 | 210 |
