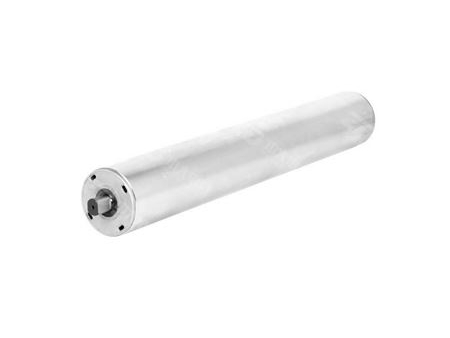

DM165 AC Drum Motor

Request a Quote

View All: http://zd-drivers.com/4-2-6-ac-drum-motor.html

Specifications

Rated Power W	Number of Stage	Gear Box Series	Gear Ratio	Max. Speed m/min	Rated Speed RPM	Rated Torque Nm	Traction N	Length mm
0.18	4	2	12.50	46.82	108.0	19.70	286	300
			14.81	39.52	91.20	23.30	338	300
			20.63	28.37	65.40	32.50	471	300
		3	25.60	22.68	52.70	38.10	552	300
			30.34	19.29	44.50	45.10	654	300
			35.09	16.68	38.50	52.20	757	300
			39.39	14.86	34.30	58.60	850	300
			48.87	11.98	27.60	72.70	1054	300
			63.40	9.230	21.30	94.30	1368	300
			70.99	8.240	19.00	105.6	1531	300
0.37	2	2	12.50	97.11	224.0	14.10	204	300
			14.81	81.97	189.1	16.70	241	300
			20.63	58.84	135.7	23.20	336	300
		3	25.60	47.42	109.4	27.20	394	300
			30.34	40.01	92.30	32.20	467	300
			35.09	34.59	79.80	37.30	540	300
			39.39	30.82	71.10	41.80	606	300
			48.87	24.84	57.30	51.90	752	300
			63.40	19.15	44.20	67.30	976	300
			70.99	17.10	39.40	75.40	1093	300
0.55	4	2	12.50	46.82	108.0	43.30	628	300
			14.81	39.52	91.20	51.30	745	300
			20.63	28.37	65.40	71.50	1037	300
		3	25.60	22.86	52.70	83.80	1215	300
			30.34	19.29	44.50	99.30	1440	300
			35.09	16.68	38.50	114.9	1665	300
0.75	2	2	12.50	97.11	224.0	28.50	413	350
			14.81	81.97	189.1	33.80	490	350
			20.63	58.84	135.7	47.00	682	350
		3	25.60	47.42	109.4	55.10	799	350
			30.34	40.01	92.30	65.30	947	350
			35.09	34.59	79.80	75.50	1095	350
			39.39	30.82	71.10	84.80	1229	350
			48.87	24.84	57.30	105.2	1525	350
