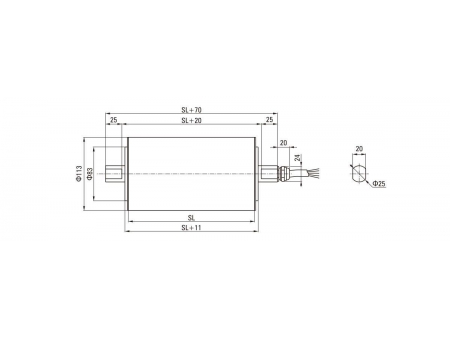

DM113 AC Drum Motor

Request a Quote

View All: http://zd-drivers.com/4-2-4-ac-drum-motor.html

Specifications

Rated Power W	Number of Stage	Gear Box Series	Gear Ratio	Max. Speed m/min	Rated Speed RPM	Rated Torque Nm	Traction N	Length mm
0.18	4	2	11.28	42.49	119.7	12.8	227	280
			12.82	37.38	105.3	14.5	257	280
			15.09	31.76	89.50	17.1	303	280
		3	21.23	22.57	63.60	24.1	426	280
			24.34	19.69	55.50	27.6	489	280
			27.65	17.33	48.80	31.4	555	280
			32.69	14.66	41.30	37.1	657	280
			41.49	11.55	32.50	47.1	833	280
0.25	2	2	11.28	88.12	248.2	8.60	152	280
			12.82	77.54	218.4	9.70	172	280
			15.09	65.87	185.6	11.5	203	280
		3	21.23	46.82	131.9	16.1	286	280
			24.34	40.84	115.0	18.5	327	280
			27.65	35.95	101.3	21.0	327	280
			32.69	30.41	85.70	24.8	440	280
			41.49	23.96	67.50	31.5	558	280
0.30	4	2	11.28	42.49	119.7	21.3	378	320
			12.82	37.38	105.3	24.2	429	320
			15.09	31.76	89.50	28.5	505	320
		3	21.23	22.57	63.60	37.9	671	320
			24.34	19.69	55.50	43.5	769	320
			27.65	17.33	48.80	49.4	874	320
			32.69	14.66	41.30	58.4	1033	320
			41.49	11.55	32.50	74.1	1311	320
0.37	2	2	11.28	88.12	248.2	12.7	225	320
			12.82	77.54	218.4	14.4	255	320
			15.09	65.87	185.6	17.0	300	320
		3	21.23	46.82	131.9	22.5	399	320
			24.34	40.84	115.0	25.8	457	320
			27.65	35.95	101.3	29.4	520	320
			32.69	30.41	85.70	34.7	614	320
			41.49	23.96	67.50	44.0	780	320
