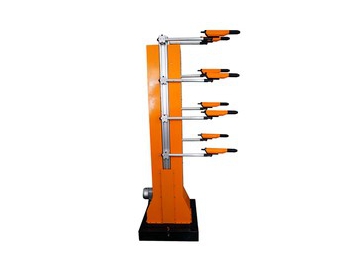

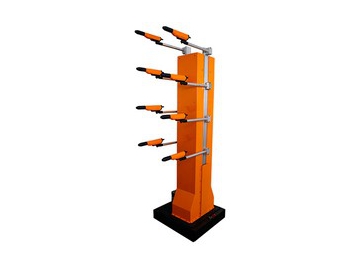

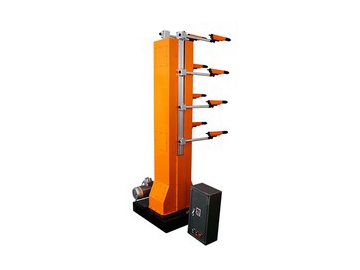

Constant Speed Powder Coating Reciprocator COLO-2600D
Request a Quote
View All: http://colorpowdercoater.com/4-5-constant-speed-powder-coating-reciprocator-colo-2600d.html
COLO-2600D crankshaft powder coating reciprocator provides more constant speed in moving process to result in the uniform finishing film. Stable and reliable quality ensures less maintenance and longer service life.
Features
1. Speed is controlled via frequency motor and microprocessor to ensure the great reliability and flexibility.
2. Slide rail transmission provides stable and jitter-free movement with lower noise.
3. This paint reciprocator suits for short stroke coating applications.
4. The slide rail transmission mode cannot be adjusted under the fixed stroke.
5. External motor is convenient for operating, checking and maintaining.
| Model | COLO-2600D |
| Power supply | AC 220V/110V 50-60Hz |
| Motor power | 1.5 kw |
| Min. speed | 0.1 m/min |
| Max. speed | 16.8 m/min |
| Max. loading capacity | 80 kg |
| Controller | Digital |
| Motor | Frequency adjustable |
| Stroke | 1.5-4.5 m |
