The conventional type glass-lined agitator from Taiji is available in anchor type, paddle shape, turbine type, combination type, and other types. They provide complete specifications and premium quality. Customers can choose different mixing types according to different reaction medium and different specifications of glass-lined reactor.

Product Gallery

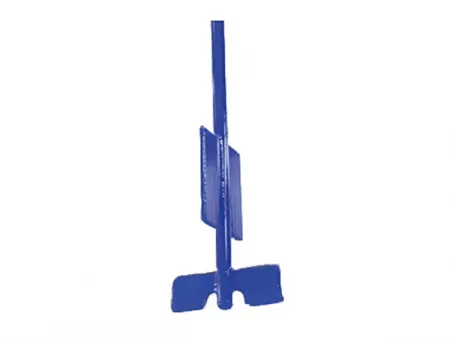

Paddle Type Agitator

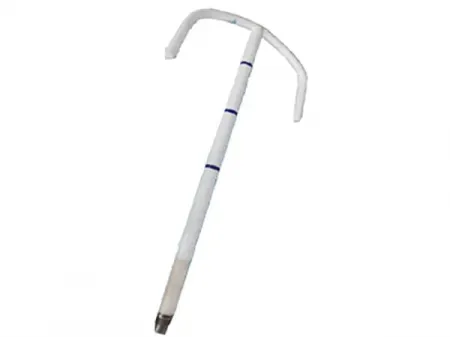

Anchor Type Agitator

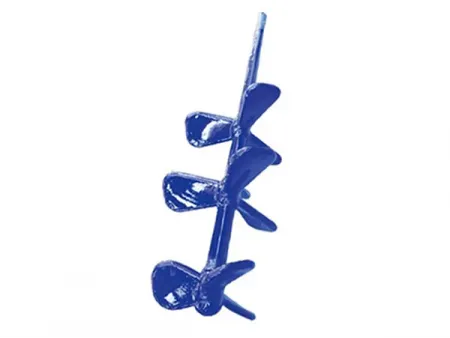

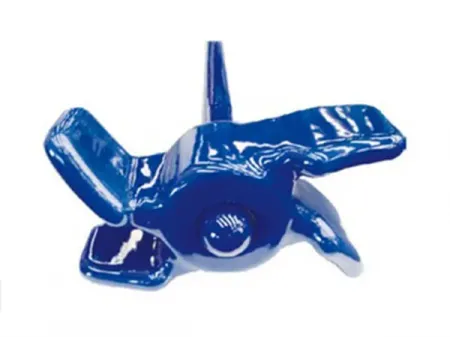

Propeller Agitator

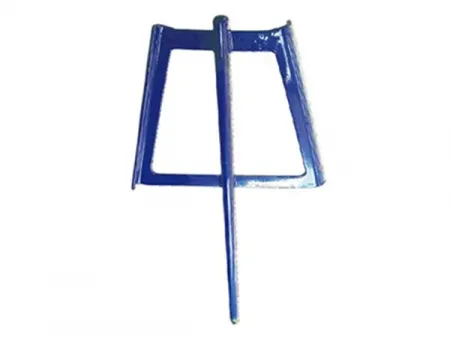

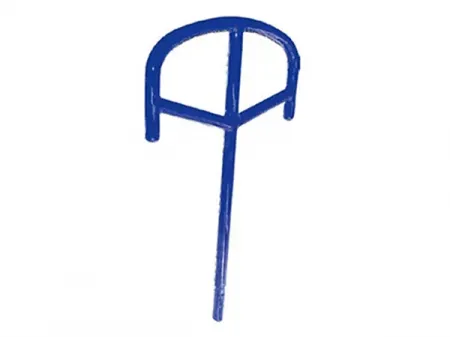

Frame Type Agitator

Evaporation Type Agitator

Flat Blade Turbine Type Agitator

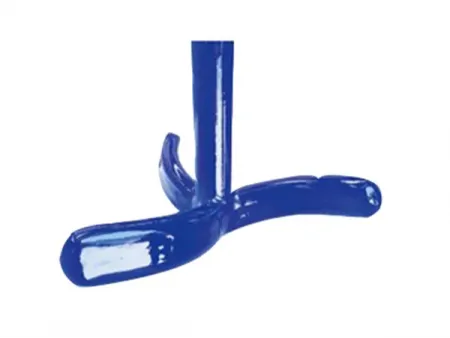

Turbine Type Agitator

Assembly Turbo Type Agitator

Gate Type Agitator

Boolean Malcolm Type Agitator

Double Folded Blade Type Agitator

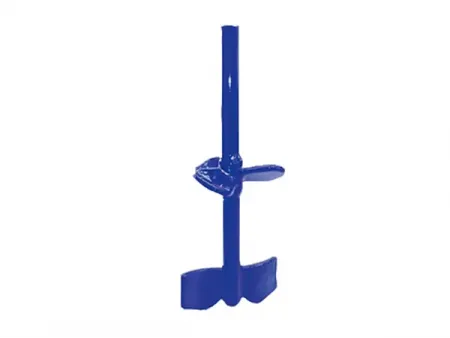

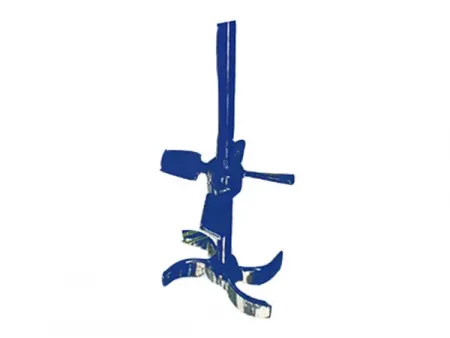

Propulsive Combination Type Agitator

Assembly Type Agitator

Taiji's glass-lined reactor agitators are lined with our TJ09 enamel. With proven and most up to date enameling technology, the glass-lined parts feature excellent resistance to corrosion, mechanical shock and sharp temperature variation.

We also can design and produce all kinds of non-standard glass-lined agitator to customer's specific demands.

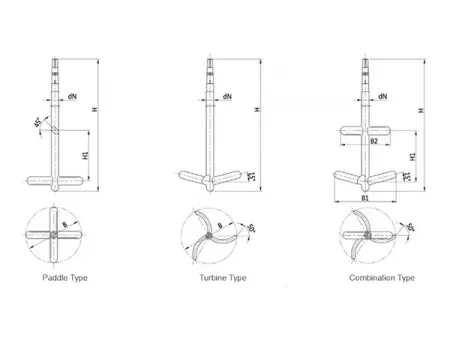

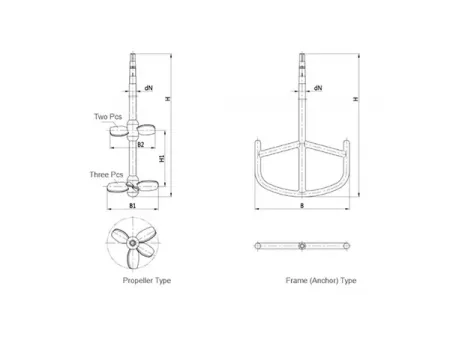

Unit: mm

		Frame (Anchor)		Paddle Type			Turbine Type			Combination Type			Propeller Type
		B	H	B	H1	H	B	H	B1	B2	H1	H	B1	B2	H1	H
K50	40	420	900	300	100	900	300	900	300	300	/	900
K100	40	520	1040	300	120	1040	300	1040	300	300	/	1040
K200	50	620	1280	400	150	1250	400	1250	400	400	150	1250	450			1250
K300	65	720	1440	400	200	1400	500	1400	500	400	200	1400	500			1400
K500	65	810	1670	450	400	1590	500	1590	500	450	400	1590	500			1590
K1000	80	1080	1960	680	600	1900	700	1900	700	680	600	1900	580			1800
K1500	80	1180	2140	680	600	2140	700	2140	700	680	600	2140	630			2010
K2000	80	1180	2480	680	600	2480	700	2480	700	680	600	2480	630			2360
K3000	95	1440	2625	720	700	2625	800	2625	800	720	700	2625	780			2480
K4000	95	1440	3100	720	700	3100	800	3100	800	720	700	3100	780	780	800	2910
K5000	95	1580	3225	720	800	3225	850	3225	850	720	800	3225	830	830	900	3065
K6300	95	1580	3690	720	800	3600	850	3600	850	720	800	3600	830	830	1000	3830
K8000	110	1800	4230
K10000	110	1800	4350
K12500	110	1800	5010

		Paddle Type			Turbine Type		Combination Type				Propeller Type
		B	H1	H	B	H	B1	B2	H1	H	B1	B2	H1	H
F1500	40	680	600	2140	700	2140	700	580	600	2410	630			2075
F2000	40	680	600	2480	700	2480	700	580	600	2480	630			2406
F3000	50	720	700	2625	800	2625	800	720	700	2625	630			2455
F4000	65	720	700	3100	800	3100	800	720	700	3100	630	580	800	2935
F5000	65	720	800	3225	850	3225	850	720	800	3225	630	580	900	3090
F6300	80	720	800	3600	850	3600	850	720	800	3600	630	580	1000	3750
F8000	80	880	1000	3890	1100	3890	1100	880	1000	3890	830	780	1100	3850
F10000	80	980	1100	4090	1200	4090	1200	980	1100	4090	830	780	1100	4090
F12500	95	980	1100	4610	1200	4610	1200	980	1100	4610	830	780	1200	4600
F16000	95	980	1200	4837	1200	4837	1200	980	1200	4837	830	780	1300	4750
F20000	95	1080	1200	5390	1300	5390	1300	1080	1200	5390	930	880	1300	5320
F30000	95	1300	1300	6145	1300	6145	1300	1080	1300	6145	1030	1030	1500	6000
