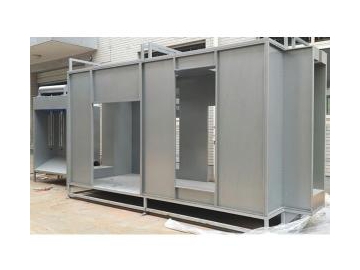

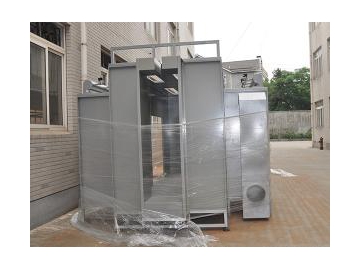

Dual Station Spray Booth
Request a Quote
This product has been discontinued and removed from our shelves.
Each station of this spray booth is equipped with a powder recovery system, its top has the chain track, which can be hung the workpieces on the chain. This dual station spray booth can be used for manual powder coating line and automatic powder coating line.
Our paint spray booth can be customized according to customer requirements.
| Item | Specifications |

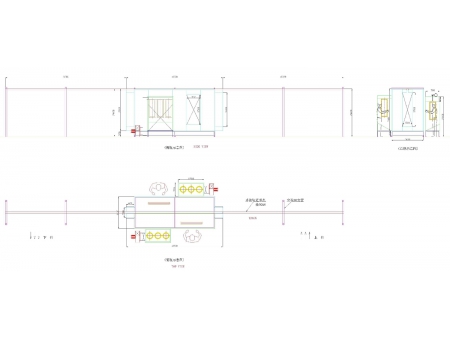

| External dimensions of spray booth | L4820mm × W1700mm×H2370mm |
| Size of inlet and outlet | W500mm×H1700mm |
| Opening size | W600mm×H1400mm |
| Spray booth material | Spraying steel plate (base: δ = 2.0mm , spray booth: δ = 1.5mm ) |
| Spray booth color | Standard |
| Spray booth base material | Square steel tube |
| Light | 2×40W (4 sets) |
Spraying Circulation System
| Item | Specifications |
| Powder collector size | L1620mm × W900mm |
| Air blower model | 4-72-3.6A |
| Motor | 3KW×2 |
| Filter element size | Φ325mm×600mm |
| Filter element quantity | 6pcs (antistatic polyester filter) |
| Filter element cleaning method | Pulse jet cleaning |
| Pulse jet valve | DC 24V/1 |
