Automatic Corner Grinding Machine
Request a Quote
Used for automatic grinding of solar panel frame corners

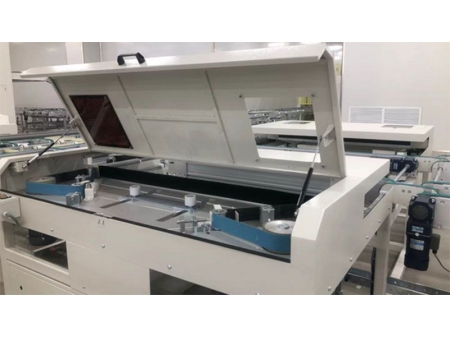

An automatic corner grinding machines is an efficient machine used for automatic grinding of solar panel frame corners. The grinding machine can adapt to different specifications of panels.
Technical Parameters
| Item | Parameters |
| Panel size | (1,680-2,650)*(992-1,500)mm |
| Cycle time | ≤20s |
| Panel positioning accuracy | ±1mm |
| Abrasive belt life | ≥300,000pcs |
| Overall dimensions (L*W*H) | 3,800*1,850*1,180mm |
| Voltage | 220V |
| Power | 1.8kW |
| Air pressure | 0.5MPa |
| Weight | 850kg |
Features
- The overall structure is composed of conveying, positioning and corner grinding parts;
- The grinding machine can grind four corners at the same time with two corner positions adjustable, adapting to different sizes of panels;
- The four corners are clamped and positioned and there is no tremor and vibration of the panels when the corner is ground;
- The dust-resisting cover is easy to open, and the dust box helps with cleaning, effectively shielding the interior components from external dust and increasing their service lives.
