Automatic Edge Taping Machine
Request a Quote
Used for automatic tape edge banding of dual-glass solar modules

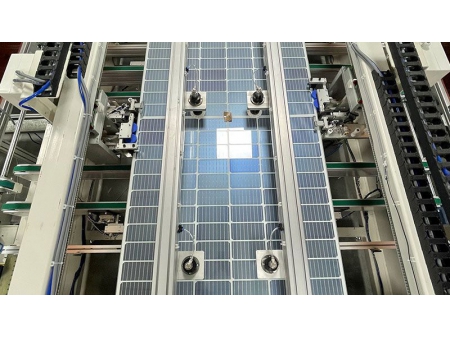

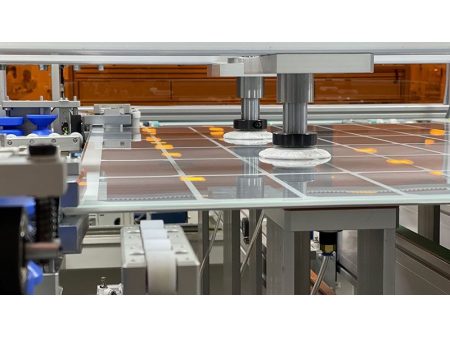

An automatic edge taping machine is used for automatic tape edge banding of dual-glass solar modules, adapting to different specifications of tapes. The edge bander can replace tapes quickly and easily and provides robust taping performance. Additionally, the energy-efficient taping machine is an indispensable machine in the solar panel line for mass production.
Technical Parameters
| Item | Parameters |
| Panel size | (1,644-2,650)*(985-1,500)mm |
| Cycle time | ≤20s |
| Tape length | Most specifications of tapes on the market |
| Tape width | 25-40mm |
| Tape roll specifications | Diameter < 300mm |
| Panel positioning accuracy | < 1mm |
| Alignment method | Cylinder blocking |
| Tape replacement time | < 2min |
| Edge taping effect | No wrinkles, wavy lines or damage |
| Panel switching time | ≤30min |
| Overall dimensions (L*W*H) | 4,100*22,900*1,850 mm |
| Voltage | 3 phase 5 wire 380V, 50Hz, AC±20% |
| Power | 6kW |
| Air pressure | 0.6-0.8MPa |
Features
- Compatible with most general-purpose tapes on the market with an outer diameter of less than 300mm;
- The panel lifting part adopts four cylinders, and the pressure wheel part can be fine-tuned for installation and debugging;
- Edge taping accuracy: ≤±1mm (starting position);
- Edge taping thickness of 4-7mm, and the edge taping machine can be customized for processing panels beyond the range;
- The edge taping length is compatible with full-sealing tape and four-corner half-sealing tape.
