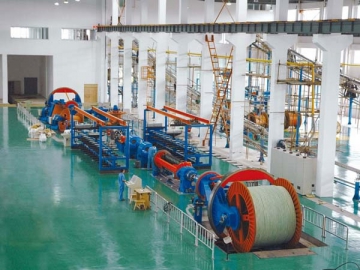

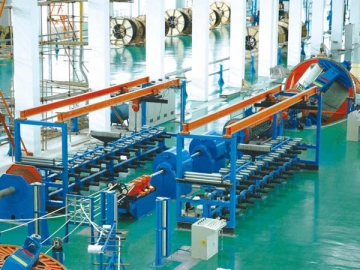

Power Cable Steel Wire Armoring Machine
Request a Quote
View All: http://smartermachinery.com
Features
1. The take-up drum size of the power cable steel wire armoring machine is from 2500mm to 3500mm.
2. Sizes of steel wire bobbin in the armoring machine are 400mm, 500mm, and 630mm. The armoring wires can reach 72, 96, till 120 wires.

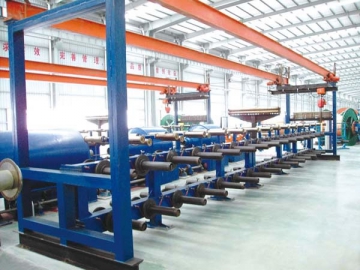

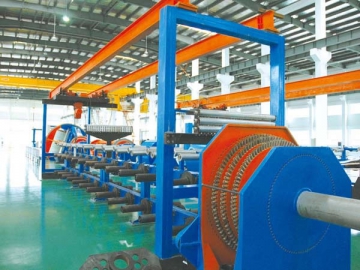

3. The steel wire bobbins can be installed on the axial cantilever, and makes the bobbin loading more convenient.
4. Completely wire back-twist winding is applied. This power cable steel wire armoring machine has a straightener to eliminate armoring stress.
| Take-up Drum Size (mm) | Drum O.W. (mm) | Loading Capacity (kg) | Max. Rotation Speed of Drum Twister | Max. Dia. of Steel Wire (mm) |
| Ø2500 | 1900 | 12000 | 40 | 4.0 |
| Ø3150 | 2300 | 15000 | 35 | 5.0 |
| Ø3500 | 2300 | 25000 | 35 | 5.0 |
